LM348DE4概述

翻两番运算放大器 QUADRUPLE OPERATIONAL AMPLIFIERS

description/ordering information

The LM148, LM248, and LM348 are quadruple, independent, high-gain, internally compensated operational amplifiers designed to have operating characteristics similar to the µA741. These amplifiers exhibit low supply-current drain and input bias and offset currents that are much less than those of the µA741.

• µA741 Operating Characteristics

• Low Supply-Current Drain . . . 0.6 mA Typ per amplifier

• Low Input Offset Voltage

• Low Input Offset Current

• Class AB Output Stage

• Input/Output Overload Protection

• Designed to Be Interchangeable With Industry Standard LM148, LM248, and LM348

LM348DE4中文资料参数规格
技术参数

供电电流 2.4 mA

电路数 4

通道数 4

共模抑制比 70 dB

带宽 1.00 MHz

转换速率 500 mV/μs

增益频宽积 1 MHz

输入补偿电压 1000 µV

输入偏置电流 30 nA

工作温度Max 70 ℃

工作温度Min 0 ℃

电源电压Max 36 V

电源电压Min 8 V

封装参数

安装方式 Surface Mount

引脚数 14

封装 SOIC-14

外形尺寸

封装 SOIC-14

物理参数

工作温度 0℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Contains Lead

数据手册

LM348DE4引脚图与封装图

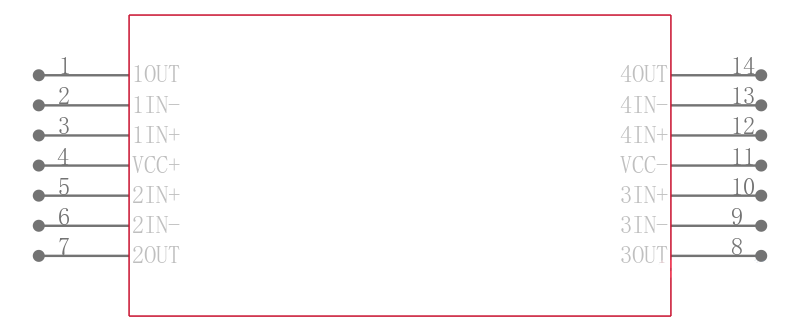

LM348DE4引脚图
LM348DE4封装图
LM348DE4封装焊盘图
在线购买LM348DE4
型号: LM348DE4
制造商: TI 德州仪器
描述:翻两番运算放大器 QUADRUPLE OPERATIONAL AMPLIFIERS
替代型号LM348DE4
型号/品牌 代替类型 替代型号对比

LM348DE4

TI 德州仪器

当前型号

当前型号

LM348DR

德州仪器

类似代替

LM348DE4和LM348DR的区别

LM348D

德州仪器

类似代替

LM348DE4和LM348D的区别

LM248D

德州仪器

类似代替

LM348DE4和LM248D的区别
