LMT84LPG

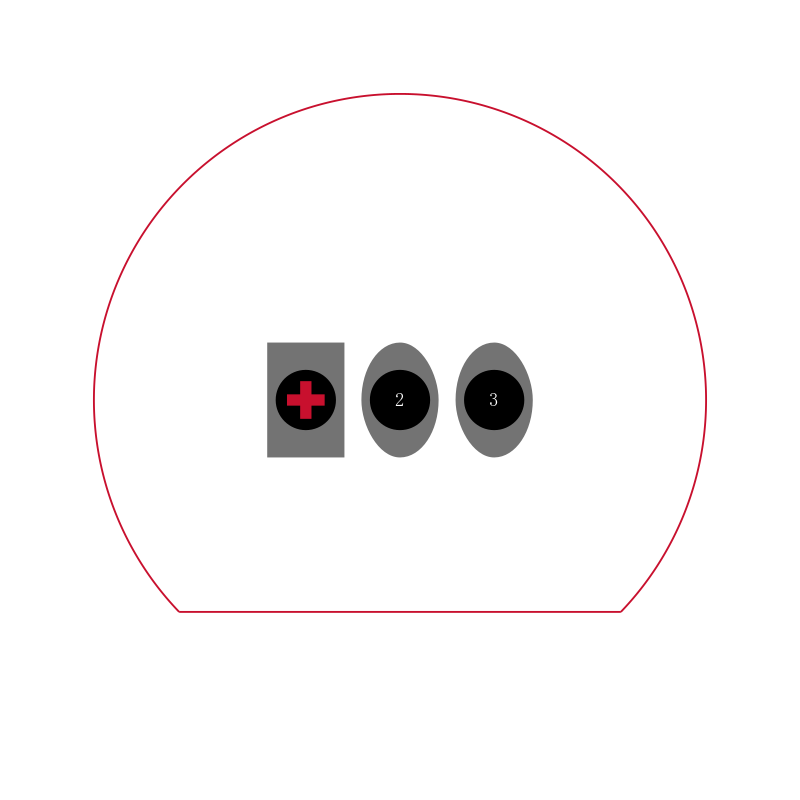

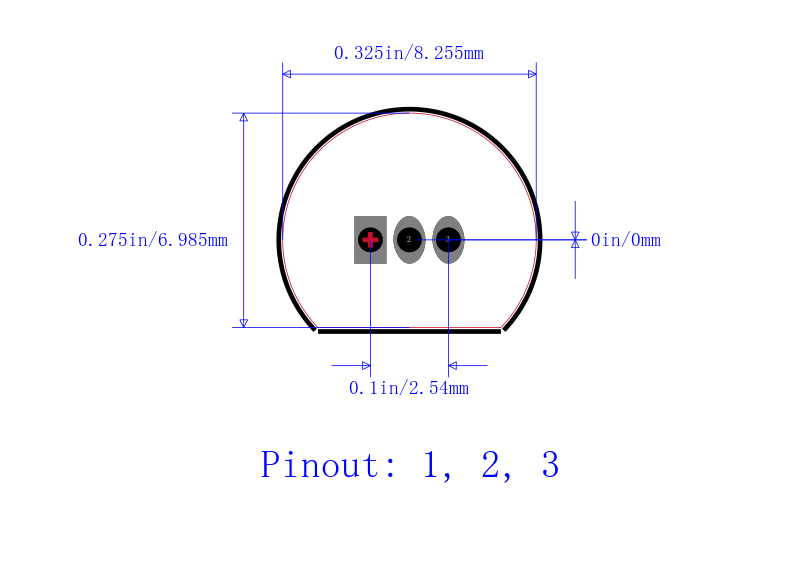

温度传感器芯片, 模拟, ± 0.4°C, -50 °C, 150 °C, TO-92, 3 引脚

The LMT84 and LMT84-Q1 are precision CMOS temperature sensors with ±0.4°C typical accuracy ±2.7°C max and a linear analog output voltage that is inversely proportional to temperature. The 1.5-V supply voltage operation, 5.4-µA quiescent current, and 0.7-ms power-on time enable effective power-cycling architectures to minimize power consumption for battery-powered applications such as drones and sensor nodes. The through-hole TO-92S package fast thermal time constant supports off-board time-temperature sensitive applications such as smoke and heat detectors. The LMT84-Q1 device is AEC-Q100 Grade 0 qualified and maintains ±2.7°C maximum accuracy over the full operating temperature range without calibration; this makes the LMT84-Q1 suitable for automotive applications such as infotainment, cluster, and powertrain systems. The accuracy over the wide operating range and other features make the LMT84 and LMT84-Q1 excellent alternative to thermistors.

For devices with different average sensor gains and comparable accuracy, refer to _Comparable Alternative Devices_ for alternative devices in the LMT8x family.
