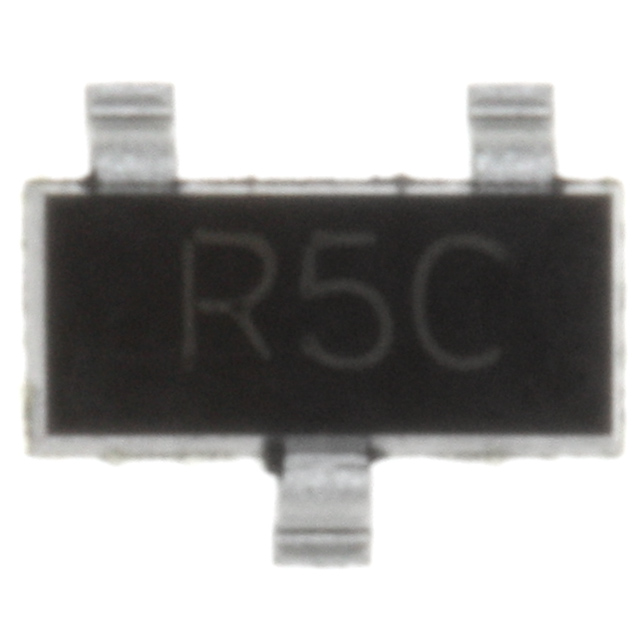

LM4040C50FTA图片1
LM4040C50FTA图片2
LM4040C50FTA图片3
LM4040C50FTA图片4
LM4040C50FTA图片5
LM4040C50FTA图片6
LM4040C50FTA图片7
LM4040C50FTA图片8
LM4040C50FTA图片9
LM4040C50FTA图片10
LM4040C50FTA图片11
LM4040C50FTA图片12
LM4040C50FTA图片13
LM4040C50FTA图片14
LM4040C50FTA图片15
LM4040C50FTA概述

LM4040C50FTA 编带

Even in the event of large power supply variations, this voltage reference power management device from Zetex can produce and maintain a precise DC voltage. It has an initial accuracy of 0.5%. With an output that has a voltage of 5 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 8mV. This voltage reference circuit supports shunt topology. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 125 °C. It runs with a maximum temperature coefficient of 100ppm/°C.

LM4040C50FTA中文资料参数规格
技术参数

容差 ±0.5 %

输出电压 5 V

输出电流 15 mA

通道数 1

针脚数 3

输出电压Max 5 V

输出电压Min 5 V

输出电流Max 15 mA

工作温度Max 125 ℃

工作温度Min -40 ℃

精度 0.5 %

封装参数

安装方式 Surface Mount

引脚数 3

封装 SOT-23-3

外形尺寸

长度 3.04 mm

宽度 1.4 mm

高度 1.02 mm

封装 SOT-23-3

物理参数

工作温度 -40℃ ~ 125℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 车用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

在线购买LM4040C50FTA
型号: LM4040C50FTA
制造商: Diodes 美台
描述:LM4040C50FTA 编带
替代型号LM4040C50FTA
型号/品牌 代替类型 替代型号对比

LM4040C50FTA

Diodes 美台

当前型号

当前型号

TLV431BFTA

美台

类似代替

LM4040C50FTA和TLV431BFTA的区别

LM4040D50FTA

美台

类似代替

LM4040C50FTA和LM4040D50FTA的区别

TLV431AFTA

美台

类似代替

LM4040C50FTA和TLV431AFTA的区别
