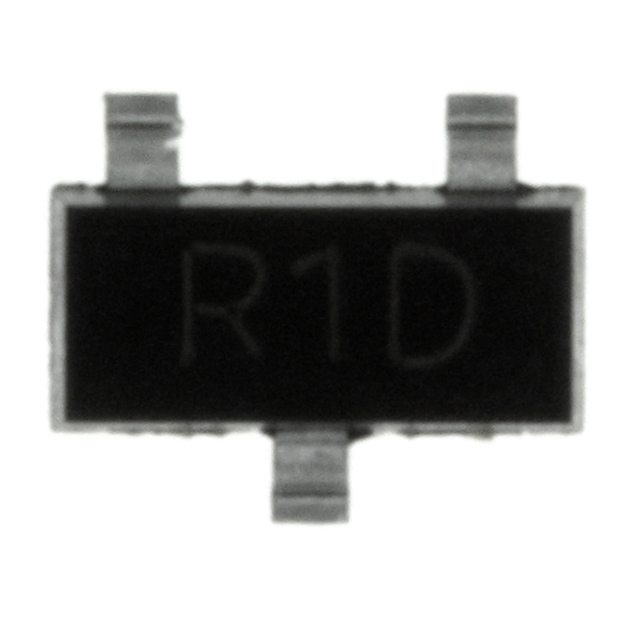

LM4041 系列 1.225 V ±1 % 精度 微功耗 并联 电压基准 - SOT-23
Even in the event of large power supply variations, this voltage reference power management device from Zetex can produce and maintain a precise DC voltage. It has an initial accuracy of 1%. With an output that has a voltage of 1.225 V, this is power management at its best. At a load regulation of 8mV a constant current can be produced at the output of your circuit. This voltage reference circuit supports shunt topology. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It runs with a maximum temperature coefficient of 150ppm/°C. This voltage reference circuit has an operating temperature range of -40 °C to 125 °C.
容差 ±1 %
输出电压 1.225 V
输出电流 12 mA
通道数 1
针脚数 3
输入电压Max 15 V
输出电压Max 1.225 V
输出电压Min 1.225 V
输出电流Max 12 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤10 V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
温度系数 ±20 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM4041DFTA Diodes 美台 | 当前型号 | 当前型号 |
LM4041CFTA 美台 | 类似代替 | LM4041DFTA和LM4041CFTA的区别 |
LM4041EEM3-1.2/NOPB 德州仪器 | 功能相似 | LM4041DFTA和LM4041EEM3-1.2/NOPB的区别 |
TS4041CILT-1.2 意法半导体 | 功能相似 | LM4041DFTA和TS4041CILT-1.2的区别 |
