LM5060QDGSRQ1

LM5060QDGSRQ1图片1
LM5060QDGSRQ1概述

热交换电压控制器 High-Side Protection Controller with Low Quiescent Current 10-VSSOP -40 to 125

高端 栅极驱动器 IC 非反相 10-VSSOP


得捷:
IC GATE DRVR HIGH-SIDE 10VSSOP


立创商城:
LM5060QDGSRQ1


德州仪器TI:
Automotive 5.5-V to 65-V high side protection controller


贸泽:
热交换电压控制器 High-Side Protection Controller with Low Quiescent Current 10-VSSOP -40 to 125


艾睿:
Hot Swap Controller 1-CH 65V N-Channel Positive Voltage Automotive 10-Pin VSSOP T/R


Verical:
Hot Swap Controller 1-CH 65V N-Channel Positive Voltage Automotive 10-Pin VSSOP T/R


LM5060QDGSRQ1中文资料参数规格
技术参数

通道数 1

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 5.5V ~ 65V

封装参数

安装方式 Surface Mount

引脚数 10

封装 SOP-10

外形尺寸

封装 SOP-10

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

数据手册

LM5060QDGSRQ1引脚图与封装图
LM5060QDGSRQ1引脚图

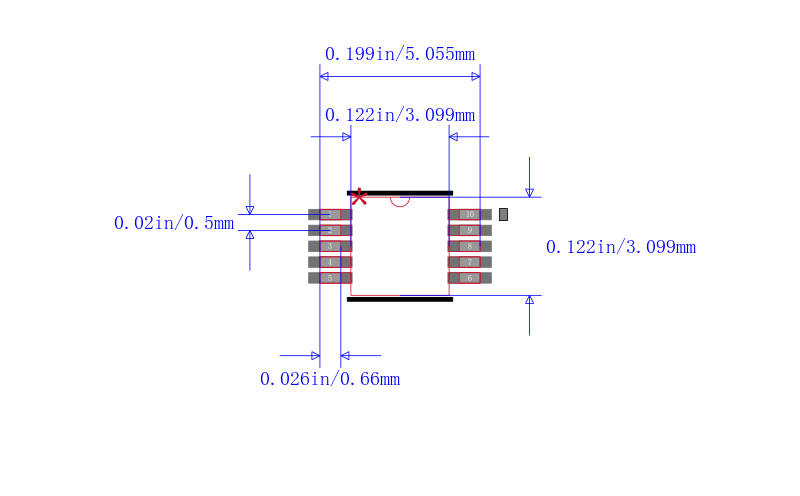

LM5060QDGSRQ1封装图

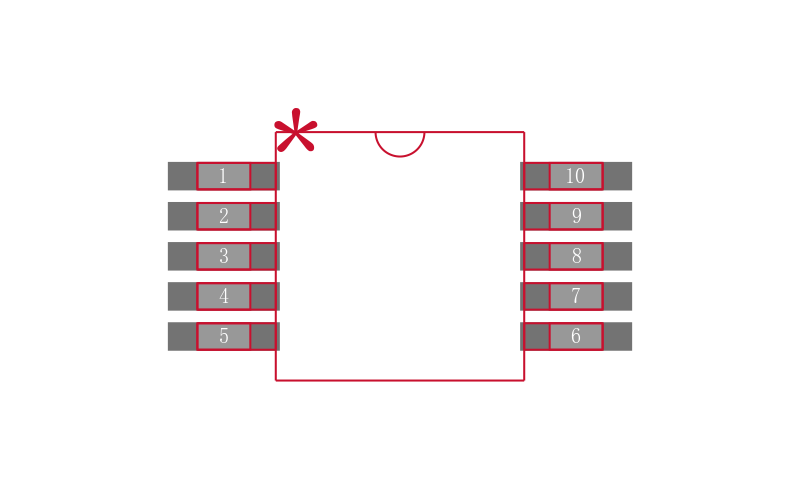

LM5060QDGSRQ1封装焊盘图
在线购买LM5060QDGSRQ1
型号: LM5060QDGSRQ1
制造商: TI 德州仪器
描述:热交换电压控制器 High-Side Protection Controller with Low Quiescent Current 10-VSSOP -40 to 125
