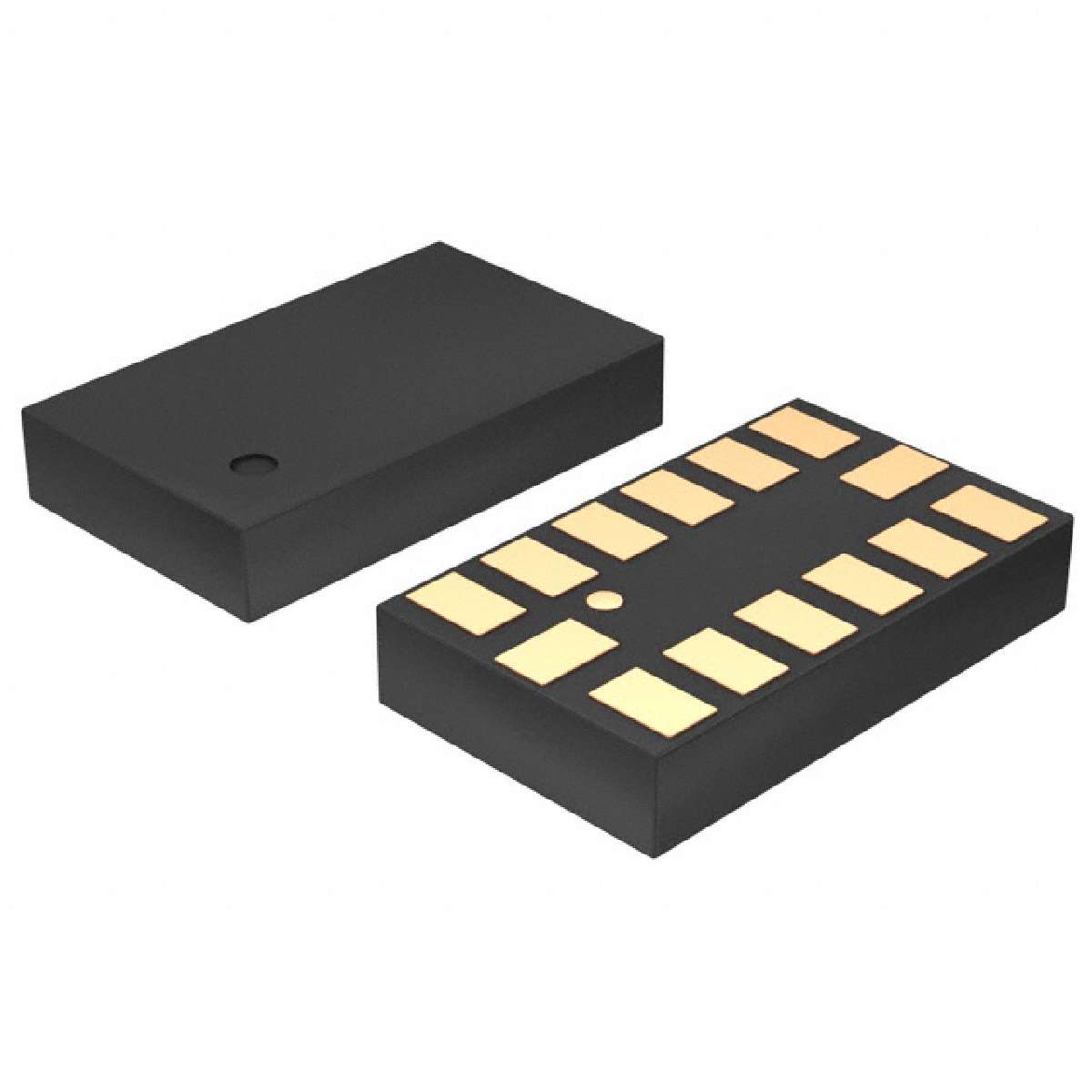

MMA7361LCR1

芯片 加速度计 3轴 MEMS 传感器输出: 模拟 测量轴: X, Y, Z 加速度范围: ± 1.5g, ± 6g 电源电压最小值: 2.2V 电源电压最大值: 3.6V 封装类型: LGA 针脚数: 14 灵敏度最小值: 740mV/g, 190.6mV/g 灵敏度类型: 206mV/g, 800mV/g 灵敏度最大值: 860mV/g, 221.5mV/g MSL: MSL 3 - 168小时 SVHC高度关注物质: No SVHC 20-Jun-2013 工作温度最小值: -40°C 工作温度最高值: 85°C 工作温度范围: -40°C 至 +85°C 每轴灵敏度: 800mV/g 电源电压范围: 2.2V 至 3.6V

The MMA7361LC is a low power, low profile capacitive micromachined accelerometer featuring signal conditioning, a 1-pole low pass filter, temperature compensation, self test, 0g-Detect which detects linear freefall, and g-Select which allows for the selection between two sensitivities. Zero-g

offset and sensitivity are factory set and require no external devices. The MMA7361LC includes a Sleep Mode that makes it ideal for handheld battery powered electronics.

Features

• 3mm x 5mm x 1.0mm LGA-14 Package

• Low Current Consumption: 400 μA

• Sleep Mode: 3 μA

• Low Voltage Operation: 2.2 V – 3.6 V

• High Sensitivity 800 mV/g @ 1.5g

• Selectable Sensitivity ±1.5g, ±6g

• Fast Turn On Time 0.5 ms Enable Response Time

• Self Test for Freefall Detect Diagnosis

• 0g-Detect for Freefall Protection

• Signal Conditioning with Low Pass Filter

• Robust Design, High Shocks Survivability

• RoHS Compliant

• Environmentally Preferred Product

• Low Cost
