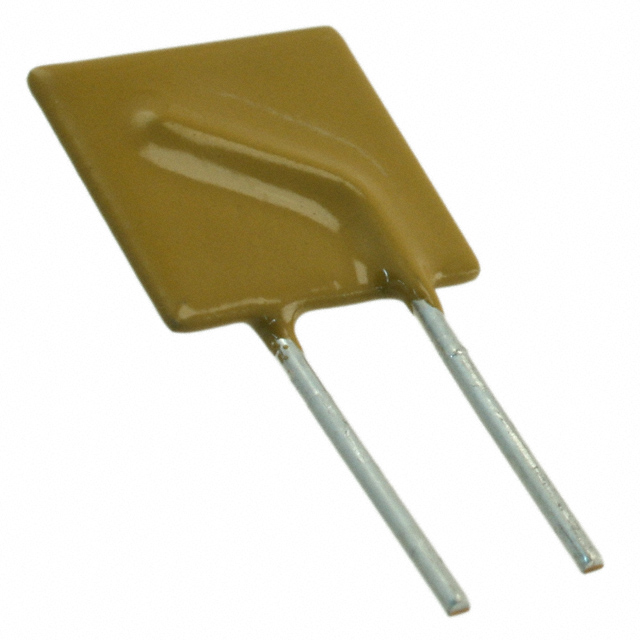

BOURNS MF-RX135/72-2 自复式保险丝, PTC, 72V, 1.35A, 径向引线
This PTC resettable fuse from Bourns is ideal for low current and low voltage ratings. This part has a lead diameter of 0.81 mm. This device has a maximum current rating of 40. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product"s terminal pitch is 5.1nom mm. This product is 12.26Max mm long, 18.26Max mm tall and 3.1Max mm deep.
额定电压DC 72.0 V
工作电压 72 VDC
跳闸时间 9.6 s
额定电流 40.0 A
耗散功率 1.7 W
电阻 0.19 Ω
保持电流 1.35 A
跳闸电流 2.7 A
额定电流Max 40 A
保持电流Max 1.35 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 72 V
额定电压 72 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 12.26 mm
宽度 12.26 mm
高度 18.26 mm
封装 Radial, Disc
厚度 3.1 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536100040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MF-RX135/72-2 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MF-RX135/72-AP 伯恩斯 | 完全替代 | MF-RX135/72-2和MF-RX135/72-AP的区别 |
MF-RX135/72-0 伯恩斯 | 类似代替 | MF-RX135/72-2和MF-RX135/72-0的区别 |
