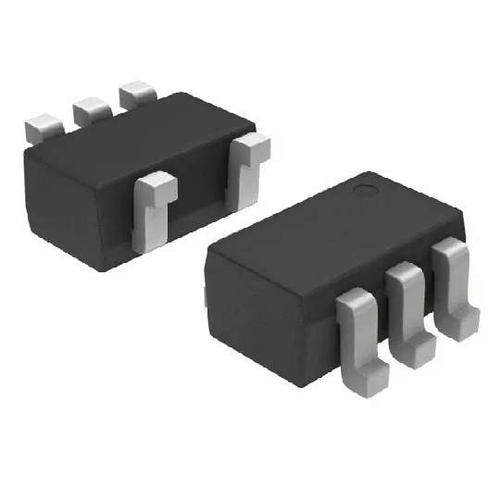

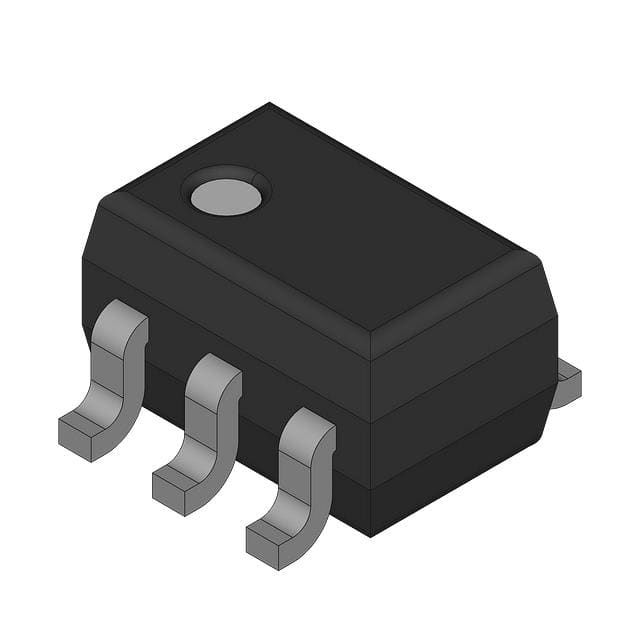

ON SEMICONDUCTOR M74VHC1G125DFT1G BUFFER, NON INVERTING, SOT-353-5 新
Leading the input to the transmission line this buffer and line driver by will amplify digital and analog signals. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V. It has 1 channels per chip.
电源电压DC 2.00V min
工作电压 2V ~ 5.5V
无卤素状态 Halogen Free
输出接口数 1
供电电流 40 μA
电路数 1
通道数 1
针脚数 5
位数 1
耗散功率 200 mW
输入数 1
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 200 mW
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 5

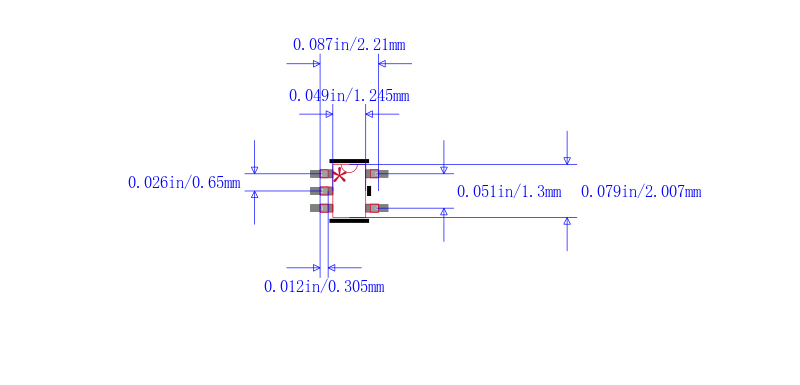

封装 SC-70-5
长度 2.2 mm
封装 SC-70-5
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
M74VHC1G125DFT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
M74VHC1G125DFT2G 安森美 | 完全替代 | M74VHC1G125DFT1G和M74VHC1G125DFT2G的区别 |
MC74VHC1G125DFT1G 安森美 | 完全替代 | M74VHC1G125DFT1G和MC74VHC1G125DFT1G的区别 |
MC74VHC1G125DF1G 安森美 | 类似代替 | M74VHC1G125DFT1G和MC74VHC1G125DF1G的区别 |
