电信PTC自恢复保险丝 Telecom PTC Resettable Fuses

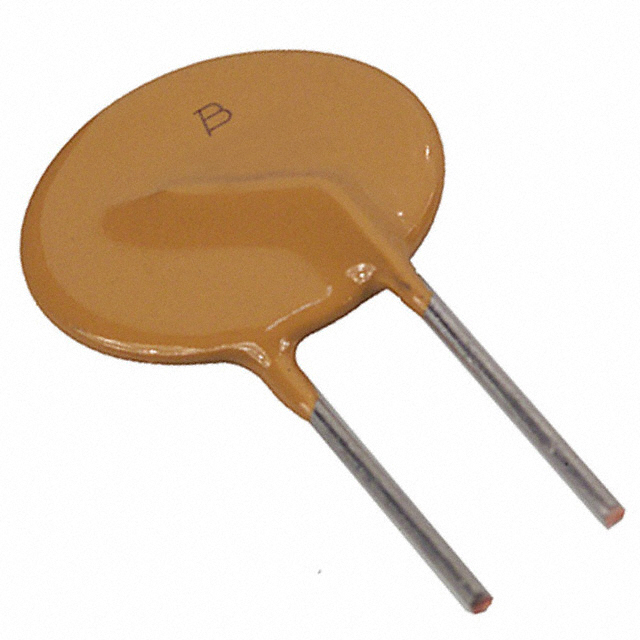

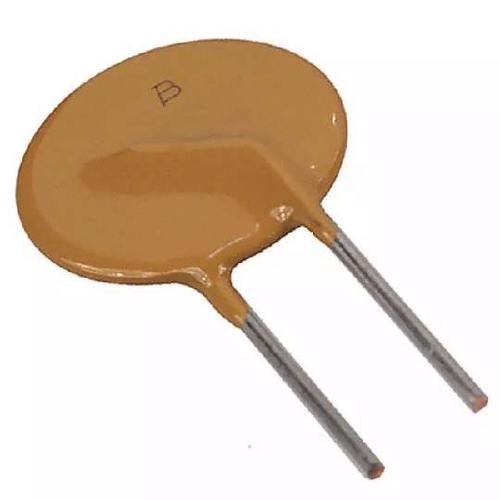

Do you need a more convenient and quicker way for your protected equipment to be restored into operation after a fuse burns out? Then this PTC resettable fuse from Bourns is perfect for you! This part has a lead diameter of 0.65 mm. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product"s terminal pitch is 5.1nom mm. This product is 6.5Max mm long, 11Max mm tall and 4.6Max mm deep.
额定电流 0.12 A
电阻 10.5 Ω
保持电流 0.12 A
电阻DC） 8 Ω
额定电流Max 3 A
保持电流Max 120 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 60 VDC
额定电压 60 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 6.5 mm
宽度 4.6 mm
高度 11 mm
封装 Radial, Disc
厚度 4.6 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MF-RX012/250-2 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MF-RX012/250-0 伯恩斯 | 类似代替 | MF-RX012/250-2和MF-RX012/250-0的区别 |
