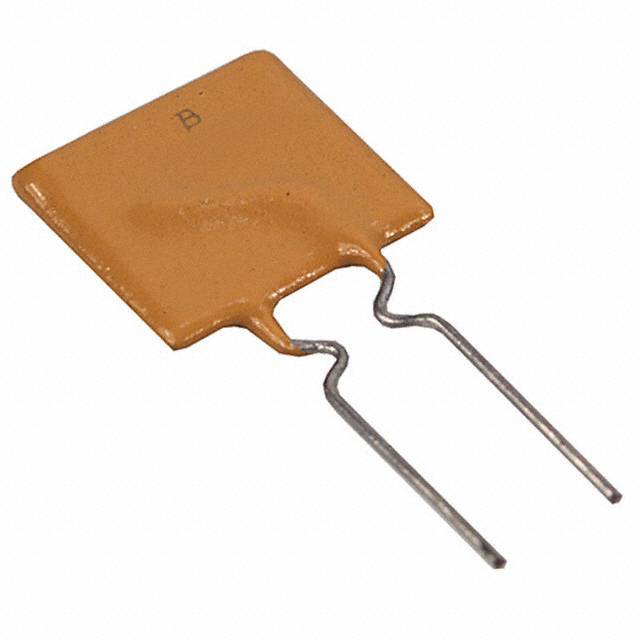

PTC Resettable Fuse 2.5Ahold 5Atrip 30V 40A 1.2W 10.3s 0.025Ω Radial 12 X 3 X 18.3mm Bulk
聚合物 PTC 自恢复保险丝 30V 2.5 A Ih 通孔 径向,圆片式
得捷:
PTC RESET FUSE 30V 2.5A RADIAL
艾睿:
Avoid constantly replacing burned out fuses with this MF-R250-0-99 PTC resettable fuse from Bourns. This device has a maximum current rating of 40. This part has a lead diameter of 0.81 mm. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product&s;s terminal pitch is 5.1nom mm. This product is 12Max mm long, 18.3Max mm tall and 3Max mm deep.
Chip1Stop:
PTC Resettable Fuse 2.5Ahold 5Atrip 30V 40A 1.2W 10.3s 0.025Ohm Radial 12 X 3 X 18.3mm Bulk
Verical:
PTC Resettable Fuse 2.5Ahold 5Atrip 30V 40A 1.2W 10.3s 0.025Ohm Radial 12 X 3 X 18.3mm Bag Automotive
Newark:
# BOURNS MF-R250-0-99 PPTC Resettable Fuse, Through Hole, MF-R Series, 2.5 A, 5 A, 30 V, -40 °C
MASTER:
PTC Resettable Fuse 2.5Ahold 5Atrip 30V 40A 1.2W 10.3s 0.025Ohm Radial 12 X 3 X 18.3mm Bag Automotive
Electro Sonic:
PTC Resettable Fuse 2.5Ahold 5Atrip 30V 40A 1.2W 10.3s 0.025Ohm Radial 12 X 3 X 18.3mm Bag Automotive
额定电压DC 30.0 V
额定电压AC 30.0 V
工作电压 30.0 V
跳闸时间 10.3 s
额定电流 40.0 A
易燃性等级 UL 94 V-0
耗散功率 1.2 W
电阻 0.048 Ω
保持电流 2.5 A
跳闸电流 5 A
额定电流Max 40 A
保持电流Max 2.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 V
额定电压 30 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 18.3 mm
宽度 12 mm
高度 18.3 mm
脚长度 7.60 mm
封装 Radial, Disc
厚度 3 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536100040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MF-R250-0-99 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MF-R250-2-99 伯恩斯 | 完全替代 | MF-R250-0-99和MF-R250-2-99的区别 |
MF-R250-AP-10 伯恩斯 | 完全替代 | MF-R250-0-99和MF-R250-AP-10的区别 |
MF-R250-AP-10-99 伯恩斯 | 完全替代 | MF-R250-0-99和MF-R250-AP-10-99的区别 |
