自恢复保险丝—PPTC 0.20A 60V 1.5ohm Hold .20 Trip .40

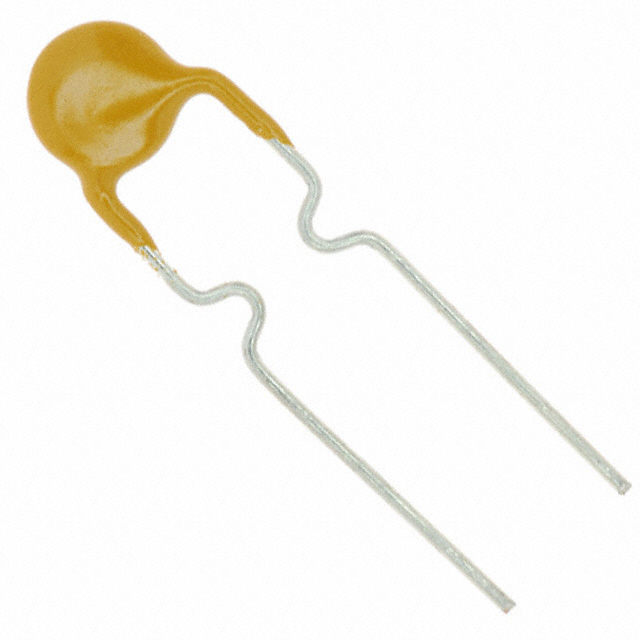

This PTC resettable fuse from Bourns is ideal for low current and low voltage ratings. This device has a maximum current rating of 40. This part has a lead diameter of 0.51 mm. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product"s terminal pitch is 5.1nom mm. This product is 3.1Max mm deep.
得捷:
PTC RESET FUSE 60V 200MA RADIAL
立创商城:
MF-R020-AP
贸泽:
自恢复保险丝—PPTC 0.20A 60V 1.5ohm Hold .20 Trip .40
艾睿:
PTC Resettable Fuse 0.2Ahold 0.4Atrip 60V 40A 0.4W 2.2s 1.5Ohm Radial 7.4 X 3.1mm Ammo Automotive
安富利:
PTC Resettable Fuse 40A 60V Ammo Pack
Chip1Stop:
PTC Resettable Fuse 0.2Ahold 0.4Atrip 60V 40A 0.4W 2.2s 1.5Ohm Radial 7.4 X 3.1mm Ammo Automotive
Verical:
PTC Resettable Fuse 0.2Ahold 0.4Atrip 60V 40A 0.4W 2.2s 1.5Ohm Radial 7.4 X 3.1mm Ammo Automotive
Electro Sonic:
PTC Resettable Fuse 0.2Ahold 0.4Atrip 60V 40A 0.4W 2.2s 1.5Ohm Radial 7.4 X 3.1mm Ammo Automotive
额定电压DC 60.0 V
工作电压 60.0 V
跳闸时间 2.2 s
额定电流 200 mA
耗散功率 0.4 W
电阻 2.84 Ω
保持电流 0.2 A
跳闸电流 400 mA
额定电流Max 40 A
保持电流Max 200 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 60 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 7.4 mm
宽度 3.1 mm
高度 12.7 mm
封装 Radial, Disc
厚度 3.1 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Ammo Pack
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MF-R020-AP Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MF-R020-AP-99 伯恩斯 | 完全替代 | MF-R020-AP和MF-R020-AP-99的区别 |
MF-R020 伯恩斯 | 类似代替 | MF-R020-AP和MF-R020的区别 |
MF-R020-2 伯恩斯 | 类似代替 | MF-R020-AP和MF-R020-2的区别 |
