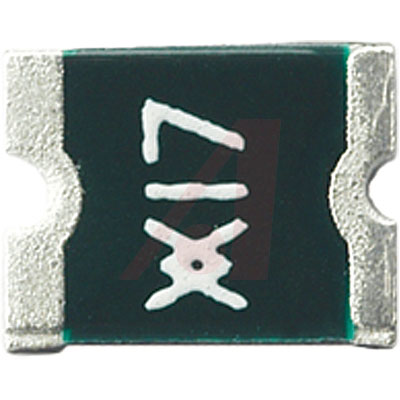

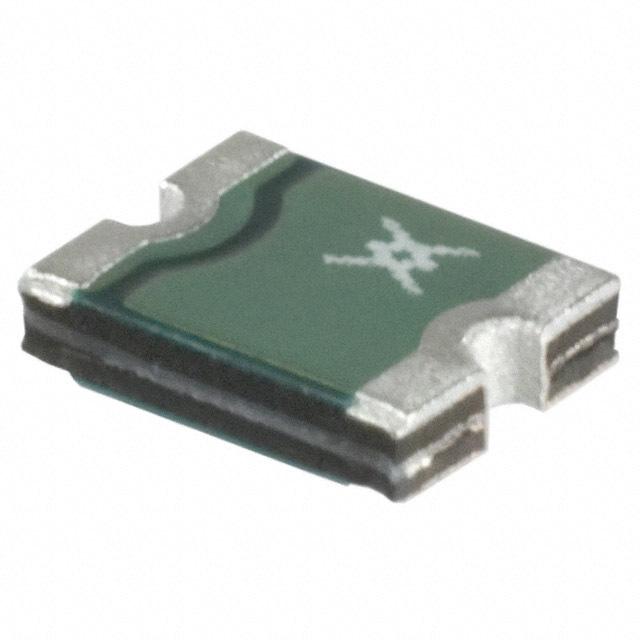

PTC Resettable Fuse 1.75Ahold 3.5Atrip 6V 40A 0.025Ω SMD Solder Pad 1210 T/R
Tyco Electronics" PolySwitch™ surface-mount devices are the preferred circuit protection method for computer, consumer, multimedia, portable and automotive electronics applications.
**Benefits:**
* Smaller Size Saves Board Space and Cost
* Many Product Choices Give Engineers More Design Flexibility
* Assists in Meeting Regulatory Requirements
* Higher Voltage Ratings Allow Use in New Applications
**Features:**
* Size 3225 mm/1210 mils
* Broadest Range of Resettable Devices in the Industry
* Small Footprint
* Fast Time-to-Trip
* Low Resistance
**Applications:**
* Computer
* Portable Electronics
* Multimedia
* Game Machines
* Telephony and Broadband
* Mobile Phones
* Automotive
* Industrial Controls
* Battery
额定电压DC 6.00 V
工作电压 6 V
跳闸时间 0.8 s
额定电流 1.75 A
耗散功率 0.8 W
电阻 0.08 Ω
保持电流 1.75 A
跳闸电流 3.5 A
电阻DC) 0.08 Ω
额定电流Max 40 A
保持电流Max 1.75 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 V
额定电压 6 VDC
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.43 mm
宽度 2.80 mm
高度 0.76 mm
封装公制 3225
封装 1210
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MICROSMD175F-2 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1210L175WR 力特 | 功能相似 | MICROSMD175F-2和1210L175WR的区别 |
MC36236 Multicomp | 功能相似 | MICROSMD175F-2和MC36236的区别 |
