FAIRCHILD SEMICONDUCTOR MM74HC138M 芯片, 74HC CMOS逻辑器件
The is a 3-to-8 Line Decoder utilizes advanced silicon-gate CMOS technology and is well suited to memory address decoding or data routing applications. The circuit features high noise immunity and low power consumption usually associated with CMOS circuitry, yet has speeds comparable to low power Schottky TTL logic. The MM74HC138 has 3 binary select inputs A, B and C. If the device is enabled, these inputs determine which one of the eight normally high outputs will go low. Two active low and one active high enables G1, G2A\ and G2B\\ are provided to ease the cascading of decoders. The decoder"s outputs can drive 10 low power Schottky TTL equivalent loads and are functionally and pin equivalent to the 74LS138. All inputs are protected from damage due to static discharge by diodes to VCC and ground.
电源电压DC 2.00V min
输出接口数 8
电路数 2
针脚数 16
耗散功率 600 mW
逻辑门个数 1
输出电流Max 5.2 mA
输入数 3
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16

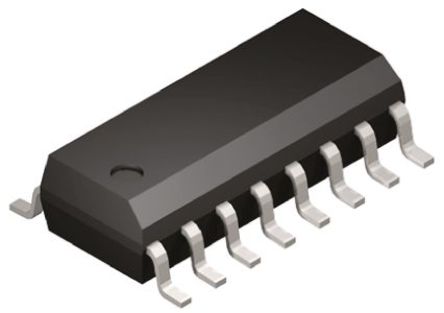

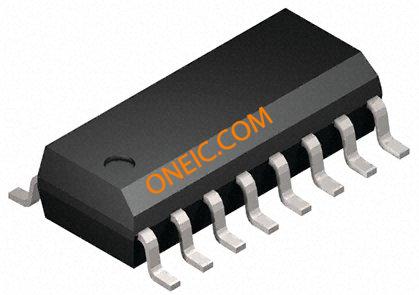

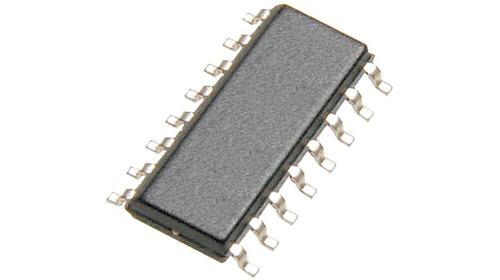

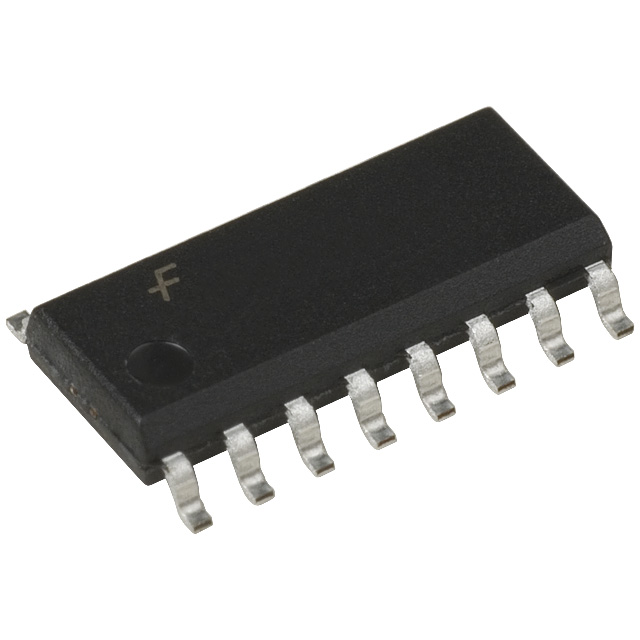

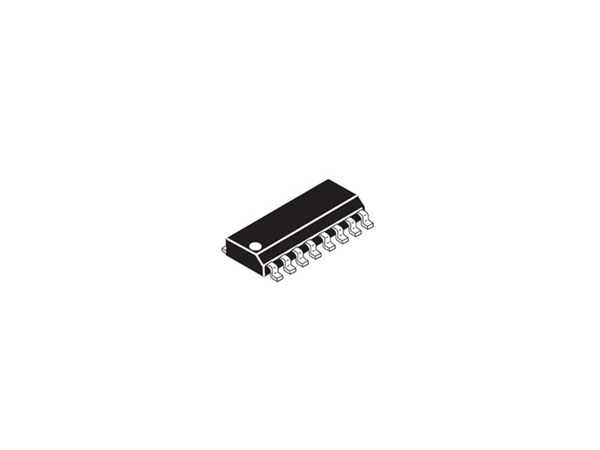

封装 SOIC-16
长度 10 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MM74HC138M Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MM74HC138MX 飞兆/仙童 | 完全替代 | MM74HC138M和MM74HC138MX的区别 |
74VHC138M 飞兆/仙童 | 类似代替 | MM74HC138M和74VHC138M的区别 |
MC74HC138ADR2G 安森美 | 功能相似 | MM74HC138M和MC74HC138ADR2G的区别 |
