C & K COMPONENTS MDS6500AL02RL 微动开关, SPDT, 通孔, 300 mA, 30 VDC

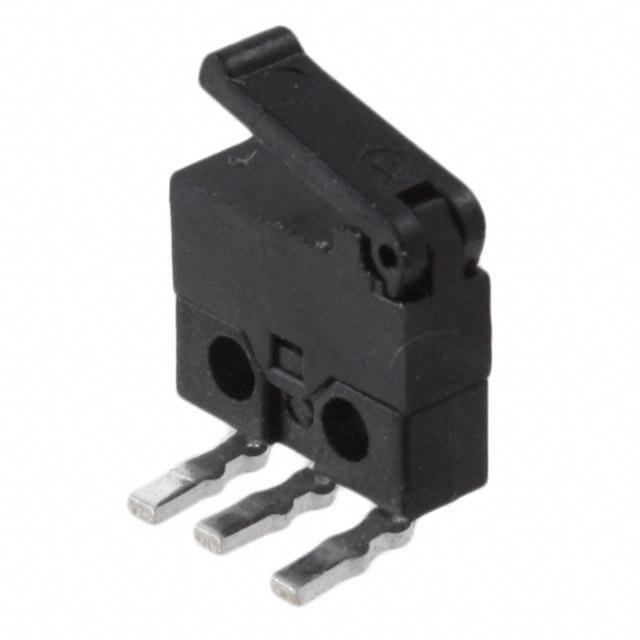

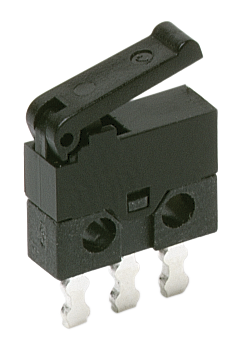

The is a snap-acting detect Micro Switch with silver-plated copper alloy contacts, PA9T cover/actuator and long right bend PC thru-hole terminals. This switch is used to detect the presence of a mechanical device and ATCA applications.
- .
- Snap-acting tactile feel
- .
- Small package size
- .
- -25 to 70°C Operating Temperature range
额定电压DC 30 V
额定电流 300mA DC
触点类型 SPDT
额定电流Max 0.3A @30VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压DC Max 30 V
接触电阻Max 100 mΩ
安装方式 Through Hole
封装 300
长度 8.2 mm
高度 2.7 mm
封装 300
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MDS6500AL02RL C&K Components | 当前型号 | 当前型号 |
MDS005C C&K Components | 完全替代 | MDS6500AL02RL和MDS005C的区别 |
