MC74VHC1G04DTT1G

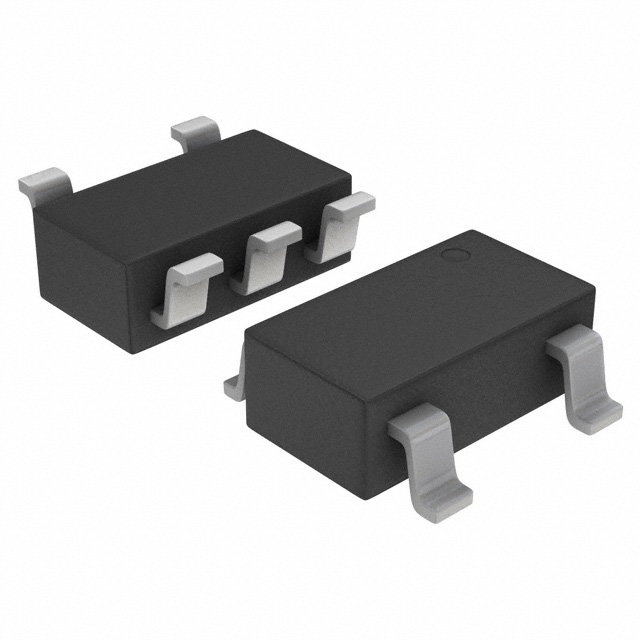

ON SEMICONDUCTOR  MC74VHC1G04DTT1G  非门, VHC系列, 1输入, 1门, 8 mA, 2V至5.5V, SOT-23-5

逻辑类型Logic Type| 反相器 Inverter \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 2V~5.5V 静态电流IqCurrent - Quiescent Max| 1uA 输出高，低电平电流Current - Output High, Low| -8mA，8mA 低逻辑电平Logic Level - Low| 0.5V~1.65V 高逻辑电平Logic Level - High| 1.5V~3.85V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 7.5ns @ 4.5V~5.5V，50pF Description & Applications| Single inverter；Features High Speed: tPD = 3.5ns Typ @ VCC = 5V Low Internal Power Dissipation: ICC = 2µA Max @TA = 25°C Power Down Protection Provided on Inputs Balanced propagation delays Balanced propagation delays Pin and Function Compatible with Other Standard Logic Families Chip complexity:FETs=105 描述与应用| 单逆变器；特性 高速：TPD =3.5ns的（典型值）@ VCC= 5V 内部功耗：ICC=2μA（最大值）@ TA= 25°C 掉电保护的输入端 平衡传输时延 平衡传输时延 引脚和功能兼容与其他标准逻辑系列 芯片的复杂度：场效应管= 105
