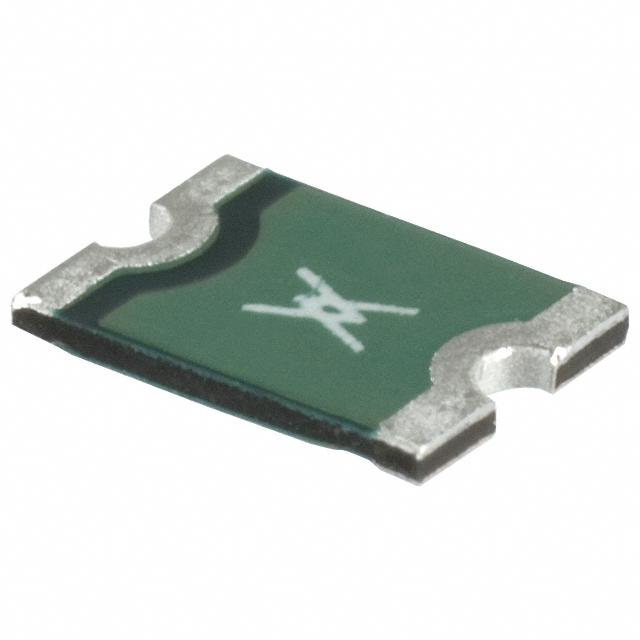

PTC Resettable Fuse 0.2Ahold 0.42Atrip 30VDC 10A 0.8W 0.02s 0.6Ω SMD Solder Pad 4.73 X 3.41 X 0.89mm T/R
Avoid delays in resuming normal operation with this PTC resettable fuse from . This device has a maximum current rating of 10. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 4.73Max mm long, 0.89Max mm tall and 3.41Max mm deep.
额定电压DC 30.0 V
工作电压 30 V
跳闸时间 0.02 s
耗散功率 0.8 W
电阻 3.3 Ω
保持电流 0.2 A
跳闸电流 0.4 A
额定电流Max 10 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 VDC
额定电压 30 VDC
安装方式 Surface Mount
封装公制 4832
封装 SMD
长度 4.73 mm
宽度 3.41 mm
高度 0.89 mm
封装公制 4832
封装 SMD
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
