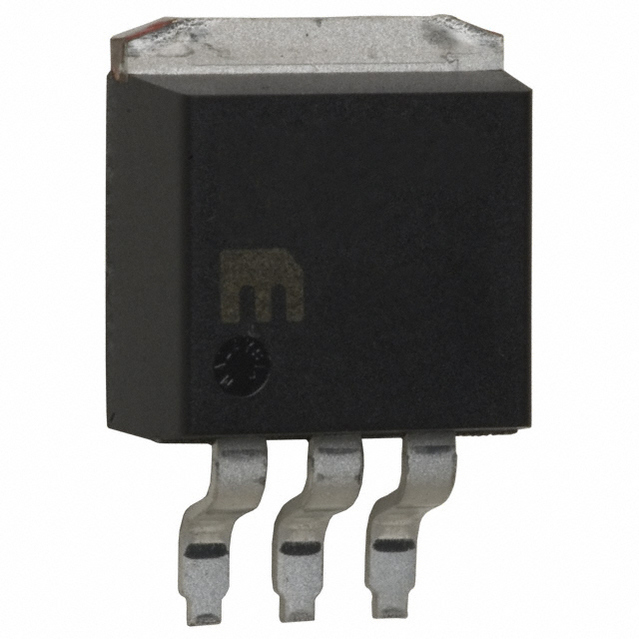

MICREL SEMICONDUCTOR MIC29150-3.3WU 固定稳压器, LDO, 2.5V至26V, 350mV压降, 3.3V输出, 1.5A输出, TO-263-3
The is a 3.3V fixed output high current high accuracy low-dropout LDO Linear Regulator. Using proprietary Super βeta PNP® process with a PNP pass element, this regulator features 350mV to 425mV full load typical dropout voltages and very low ground current. Designed for high current loads, this device also find applications in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. The device is fully protected against overcurrent faults, reversed input polarity, reversed lead insertion, overtemperature operation and positive and negative transient voltage spikes.
- .
- Accurate 1% guaranteed tolerance
- .
- Extremely fast transient response
- .
- Reverse-battery and load dump protection
工作电压 2V ~ 26V
额定电流 1.50 A
输出接口数 1
输入电压DC 26.0V max
输出电压 3.3 V
输出电流 1.5 A
针脚数 3
跌落电压 350 mV
输入电压Max 26 V
输入电压Min 2.5 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 1 %
电源电压Min 2.5 V
输入电压 ≤26 V
安装方式 Surface Mount
引脚数 3
封装 TO-263-4
封装 TO-263-4
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Each
制造应用 Computers & Computer Peripherals, Power Management, Industrial, 电源管理, 便携式器材, Automotive, Portable Devices, 工业, 车用, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MIC29150-3.3WU Micrel 迈瑞 | 当前型号 | 当前型号 |
MIC29150-3.3WUTR 迈瑞 | 完全替代 | MIC29150-3.3WU和MIC29150-3.3WUTR的区别 |
LM2937ES-3.3/NOPB 德州仪器 | 类似代替 | MIC29150-3.3WU和LM2937ES-3.3/NOPB的区别 |
LM3940IS-3.3/NOPB 德州仪器 | 功能相似 | MIC29150-3.3WU和LM3940IS-3.3/NOPB的区别 |
