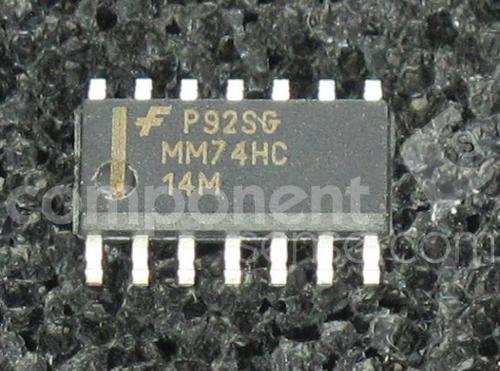

FAIRCHILD SEMICONDUCTOR MM74HC14M 非门, HC系列, 施密特触发, 6门, 1输入, 5.2 mA, 2V至6V, SOIC-14
The is a hex inverting Schmitt Trigger, utilizes advanced silicon-gate CMOS technology to achieve the low power dissipation and high noise immunity of standard CMOS, as well as the capability to drive 10 LS-TTL loads. The 74HC logic family is functionally and pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
电源电压DC 5.00 V
输出接口数 6
输出电流 5.2 mA
电路数 6
通道数 6
针脚数 14
静态电流 40 µA
逻辑门个数 6
输入数 6
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14

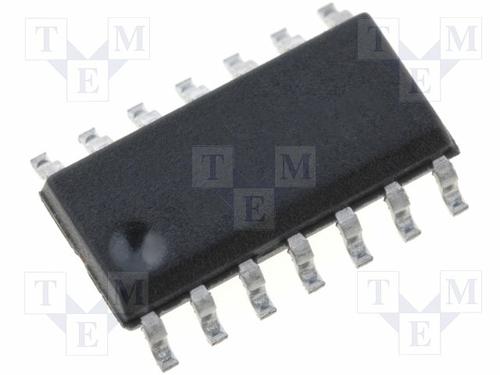

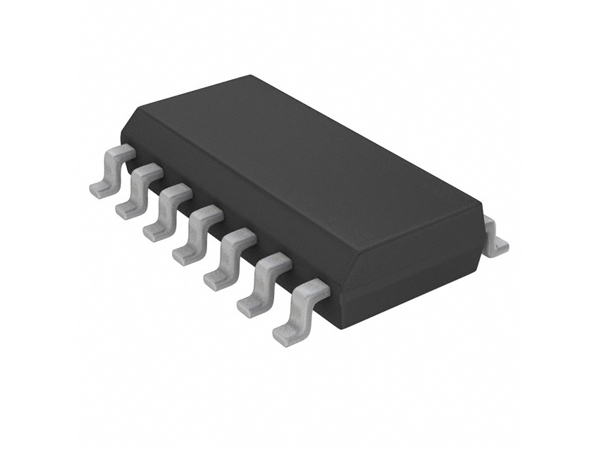

封装 SOIC-14
高度 1.5 mm
封装 SOIC-14
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MM74HC14M Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
74VHC14M 飞兆/仙童 | 类似代替 | MM74HC14M和74VHC14M的区别 |
MC74HC14ADR2G 安森美 | 功能相似 | MM74HC14M和MC74HC14ADR2G的区别 |
