MM74HCT14M

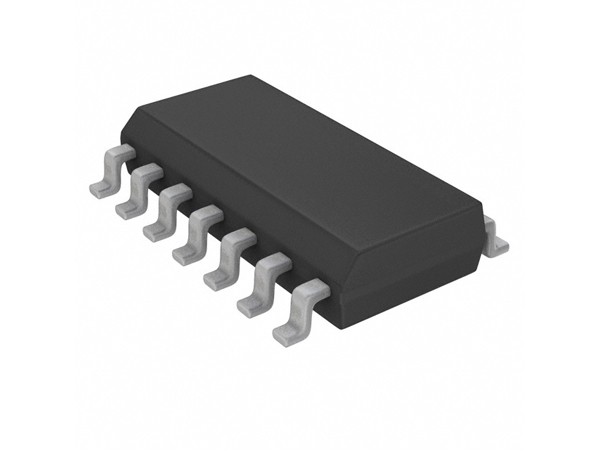

FAIRCHILD SEMICONDUCTOR  MM74HCT14M  非门, HCT系列, 施密特触发, 6门, 1输入, 4.8 mA, 4.5V至5.5V, SOIC-14

The is a Hex Inverting Schmitt-trigger utilizes advanced silicon-gate CMOS technology to achieve the low power dissipation and high noise immunity of standard CMOS, as well as the capability to drive 10 LS-TTL loads. The 74HCT logic family is functionally and pin-out-compatible with the standard 74LS logic family. Inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

.

13ns Propagation delay

.

10µA Maximum low quiescent current

.

1µA Maximum low input current

.

Fan-out of 10 LS-TTL loads

.

0.6V Hysteresis Voltage

.

TTL, LS pin-out and input threshold compatible
