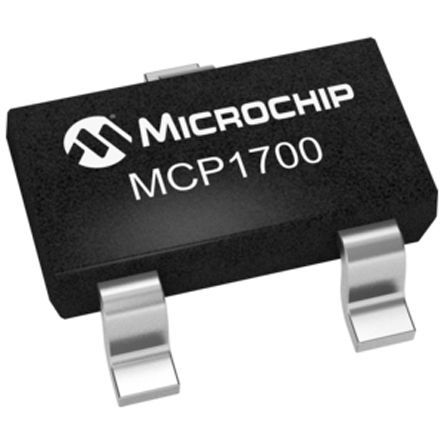

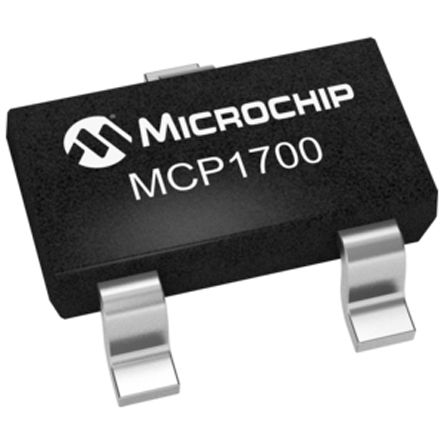

MICROCHIP MCP1700T-3002E/TT 固定电压稳压器, LDO, 2.3V至6V, 178mV压差, 3V输出, 250mA输出, SOT-23-3
MCP1700 低压降电压稳压器
### LDO(低压降)线性稳压器,
欧时:
Microchip MCP1700T-3002E/TT LDO 稳压器, 3 V输出, 250mA最大输出, ±2%精确度, 2.3 → 6 V输入, 3引脚
得捷:
IC REG LINEAR 3V 250MA SOT23-3
立创商城:
正 Vin=6V Vout=3V 250mA 44dB@100Hz
e络盟:
固定电压稳压器, LDO, 2.3V至6V, 178mV压差, 3V输出, 250mA输出, SOT-23-3
艾睿:
Keep calm and stay stable by implementing this LDO MCP1700T-3002E/TT linear regulator developed by Microchip Technology. Its typical dropout voltage at current is 0.178@250mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.25Min A. With a small input voltage of 2.3 V and a max of 6 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 3 V, this is power management at its best. A load regulation of 1%Typ and line regulation of 0.75%/VTyp is necessary for providing a constant voltage level at your output. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.35@250mA V.
Allied Electronics:
MCP1700T-3002E/TT; LDOVoltage Regulator; 250mA; 3V +/-2%; 2.3 to 6Vin; 3-Pin SOT-23
安富利:
LDO Regulator Pos 3V 0.25A 3-Pin SOT-23 T/R
Chip1Stop:
LDO Regulator Pos 3V 0.25A 3-Pin SOT-23 T/R
TME:

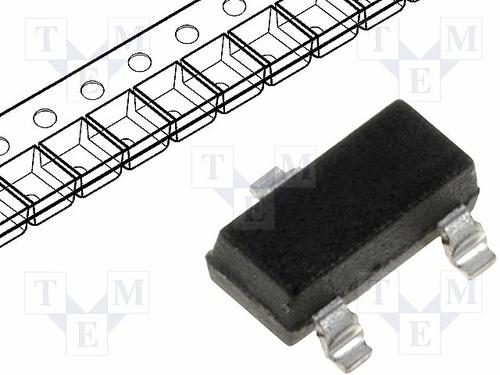

Voltage regulator; LDO, fixed; 3V; 0.25A; SOT23-3; SMD; ±0.4%
Verical:
LDO Regulator Pos 3V 0.25A Automotive 3-Pin SOT-23 T/R
Newark:
Fixed LDO Voltage Regulator, 2.3V to 6V In, 178mV Dropout, 3V/250mA Out, SOT-23-3
儒卓力:
**LDO.VREG POS 3V 0,25A SOT23-3L **
DeviceMart:
IC REG LDO 3V .25A SOT23-3
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3V 250mA SOT-23-3
工作电压 2.3V ~ 6V
输出接口数 1
输入电压DC 2.30V min
输出电压 3 V
输出电流 250 mA
针脚数 3
静态电流 0.0016 mA
输出电容类型 Ceramic
跌落电压 178 mV
输入电压Max 6 V
输入电压Min 2.3 V
输出电压Min 3 V
输出电流Max 250 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 0.3696 W
精度 ±2 %
输出通道数 1
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 3

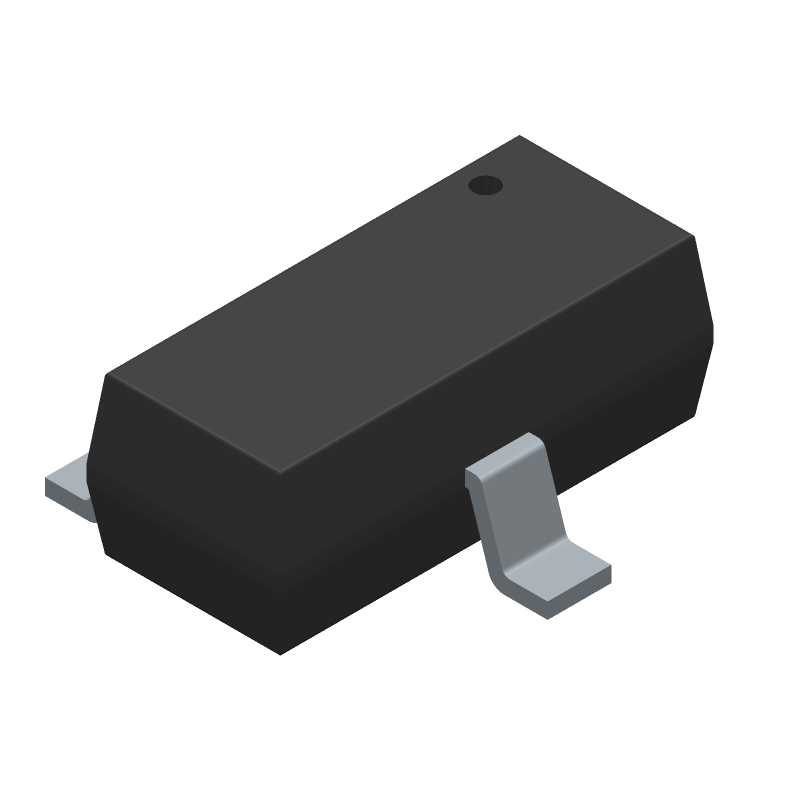

封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 0.95 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 安全, 车用, 电源管理, 传感与仪器, Power Management, Security, Sensing & Instrumentation, Consumer Electronics, , Consumer Electronics, 消费电子产品, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1700T-3002E/TT Microchip 微芯 | 当前型号 | 当前型号 |
MCP1700-3002E/TO 微芯 | 类似代替 | MCP1700T-3002E/TT和MCP1700-3002E/TO的区别 |
MCP1700T-3002E/MB 微芯 | 功能相似 | MCP1700T-3002E/TT和MCP1700T-3002E/MB的区别 |
MCP1700-3002E/MB 微芯 | 功能相似 | MCP1700T-3002E/TT和MCP1700-3002E/MB的区别 |
