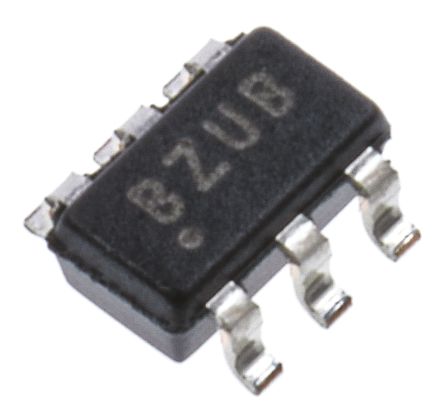

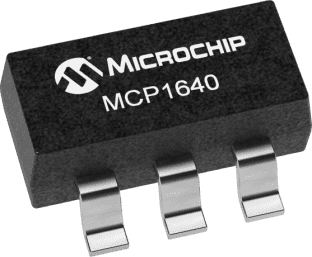

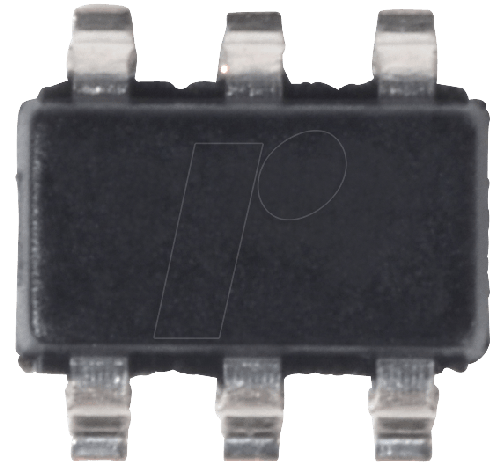

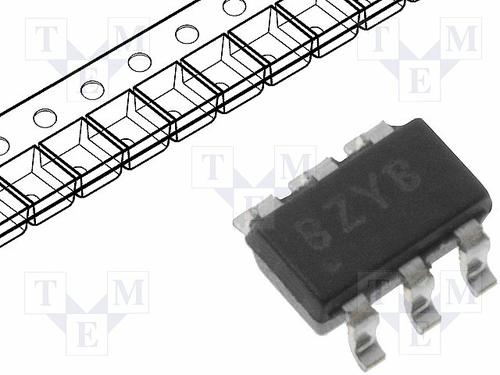

MICROCHIP MCP1640T-I/CHY 直流-直流开关升压逐步递增稳压器, 可调, 650mV-5.5V输入, 2V-5.5V输出, 350mA输出, SOT-23-6
MCP1640 同步升压转换器
欧时:
Microchip MCP1640T-I/CHY 升压调节器, 可调输出, 350mA最大输出 5.5 V, 6引脚 SOT-23封装
得捷:
IC REG BOOST ADJ 350MA SOT23-6
立创商城:
升压型 Vin=800mV~5.5V Vout=2V~5.5V 350mA
贸泽:
开关稳压器 500 kHz 300 mA Syn. PWM/PFM enabled
艾睿:
Adjust the voltage level of your devices with this step up MCP1640T-I/CHY DC to DC converter from Microchip Technology. This converter&s;s single output can produce a current up to 0.35Typ A. This will operate at a minimum voltage of 0.65 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 2 to 5.5 V, this is power management at its best. At a load regulation of 0.01%Typ and line regulation of 0.01%/VTyp your circuit is capable of maintaining a constant voltage level at your output. This converter is 96typ % efficient. This part offers a switching frequency of 500 kHz in order to work properly. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
Allied Electronics:
500 KHZ, 300 MA SYN. BOOST, OUTPUT DISCONNECT & PWM/PFM ENABLED, 6 SOT-23 COL T/
Chip1Stop:
Conv DC-DC 0.65V to 5.5V Step Up Single-Out 2V to 5.5V 0.35A Automotive 6-Pin SOT-23 T/R
TME:
PMIC; DC/DC converter; Uin:0.65÷5.5V; Uout:2÷5.5V; SOT23-6; ±3%
Verical:
Conv DC-DC 0.65V to 5.5V Synchronous Step Up Single-Out 2V to 5.5V 0.35A Automotive 6-Pin SOT-23 T/R
Newark:
# MICROCHIP MCP1640T-I/CHY DC-DC Switching Boost Step Up Regulator, Adjustable, 650mV-5.5Vin, 2V-5.5Vout, 350mAout, SOT-23-6
儒卓力:
**DC-DC 16V 1A SOT-23 SMD **
力源芯城:
96%,500KHz,可调输出的同步升压DC-DC转化器
DeviceMart:
IC REG BST SYNC ADJ 0.1A SOT23-6
频率 500 kHz
电源电压DC 5.50V max
工作电压 0.65V ~ 5.5V
输出接口数 1
输入电压DC 650mV min
输出电压 2V ~ 5.5V
输出电流 350 mA
针脚数 6
静态电流 30 µA
开关频率 500 kHz
输入电压Max 5.5 V
输入电压Min 650 mV
输出电压Max 5.5 V
输出电压Min 2 V
输出电流Max 350 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.65 V
输入电压 0.8V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 SOT-23-6
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Medical, Wireless, Sensing & Instrumentation, Automotive, Automoti, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1640T-I/CHY Microchip 微芯 | 当前型号 | 当前型号 |
TPS61071DDCR 德州仪器 | 功能相似 | MCP1640T-I/CHY和TPS61071DDCR的区别 |
MCP1640-I/MC 微芯 | 功能相似 | MCP1640T-I/CHY和MCP1640-I/MC的区别 |
TPS61072DDCR 德州仪器 | 功能相似 | MCP1640T-I/CHY和TPS61072DDCR的区别 |
