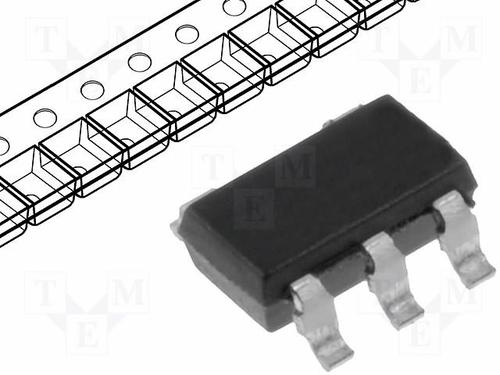

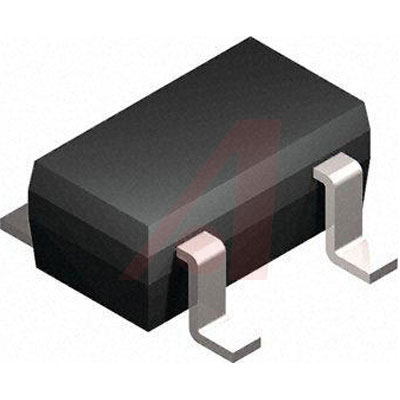

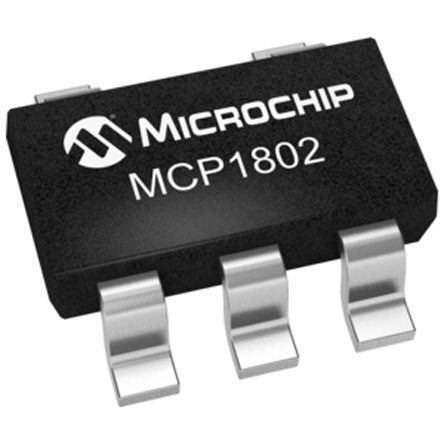

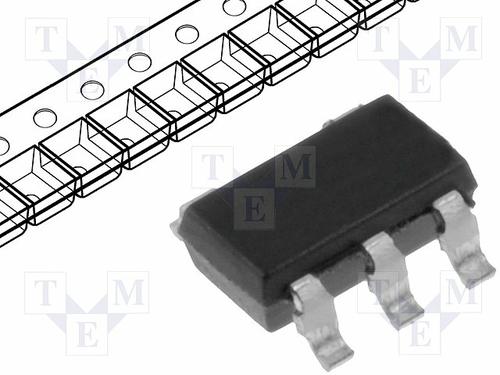

MICROCHIP MCP1802T-3302I/OT 芯片, 稳压器, LDO, 3.3V, 0.3A, 5-SOT-23
MCP1802 低压降稳压器
### LDO(低压降)线性稳压器,
欧时:
Microchip MCP1802T-3302I/OT LDO 稳压器, 3.3 V输出, 300mA最大输出, ±2%精确度, 2 → 10 V输入, 5引脚
得捷:
IC REG LINEAR 3.3V 300MA SOT23-5
立创商城:
正 Vin=10V Vout=3.3V 300mA 70dB@10kHz
e络盟:
芯片, 稳压器, LDO, 3.3V, 0.3A, 5-SOT-23
艾睿:
Stable power is ideal for better processing this LDO MCP1802T-3302I/OT linear regulator developed by Microchip Technology will help do so. Its typical dropout voltage at current is 0.06@30mA|0.2@100mA|0.08@30mA|0.24@100mA V. This device has a maximum power dissipation of 250 mW. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.3Min A. With a small input voltage of 2 V and a max of 10 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 100mV and line regulation of 0.2%/V. Its maximum power dissipation is 250 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. Its polarity is positive. The maximum dropout voltage is 0.09@30mA|0.25@100mA|0.12@30mA|0.35@100mA V.
Allied Electronics:
IC; LINEAR REGULATOR; MAX. INPUT; 10V; OUTPUT; 3.3V; 300MA; ACCURACY; 0.4%; SOT23-5
安富利:
LDO Regulator Pos 3.3V 0.3A 5-Pin SOT-23 T/R
TME:
Voltage regulator; LDO, fixed; 3.3V; 0.3A; SOT23-5; SMD; ±2%
Verical:
LDO Regulator Pos 3.3V 0.3A 5-Pin SOT-23 T/R
Newark:
# MICROCHIP MCP1802T-3302I/OT Fixed LDO Voltage Regulator, 2V to 10V In, 200mV Dropout, 3.3V/300mA Out, SOT-23-5
儒卓力:
**LDO.VREG POS 3,3V 0,3A SOT23 **
Electro Sonic:
Fixed LDO Voltage Regulator - 2V to 10V - 200mV Dropout - 3.3Vout - 300mAout - SOT-23 - 5 Pin.
DeviceMart:
IC REG LDO 3.3V .3A SOT23-5
工作电压 2V ~ 10V
输出接口数 1
输出电压 3.3 V
输出电流 300 mA
供电电流 50 μA
针脚数 5
耗散功率 0.25 W
静态电流 0.025 mA
跌落电压 200 mV
输入电压Max 10 V
输入电压Min 2 V
输出电压Min 3.3 V
输出电流Max 300 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 250 mW
精度 ±2 %
输入电压 10 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
