MAX2090ETP+

MAXIM INTEGRATED PRODUCTS  MAX2090ETP+  芯片, 射频放大器

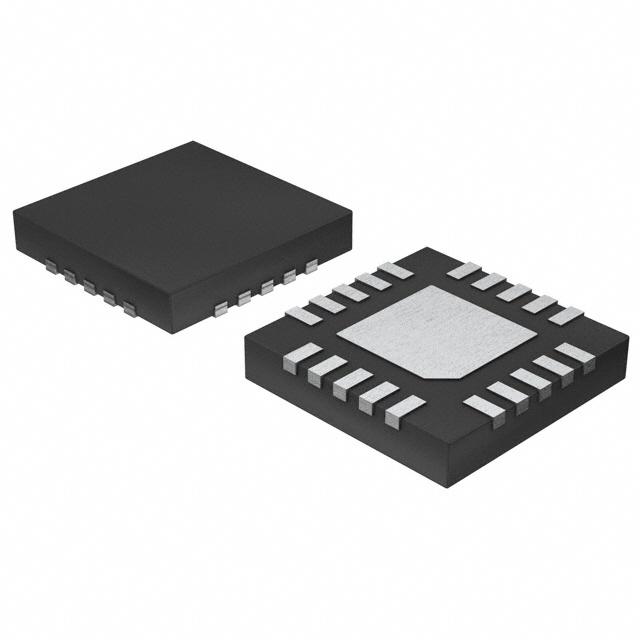

The is a 50MHz to 1000MHz analogue VGA with threshold alarm circuit and error amplifier for level control in 20 pin TQFN package. This high linearity analogue variable gain amplifier VGA is a monolithic SiGe BiCMOS attenuator, amplifier, error amplifier and alarm circuit designed to interface with 50ohm systems operating in 50MHz to 1000MHz frequency range. An external analogue control voltage controls analogue attenuator. The device has gain range of -10.9dB to +26.1dB, noise figure of 4dB, OIP3 linearity of +38dBm and wide RF bandwidth. Each of these features makes the device an ideal VGA for numerous receiver and transmitter applications. In addition, the device operates from single 5V supply. The MAX2090 is used in point to point receivers and transmitters, RF/IF variable gain stages, temperature compensation circuits, cellular applications, WiMAX applications, LTE applications, fixed broadband wireless access and wireless local loop.

.

Supply voltage range from 4.75V to 5.8V

.

Operating temperature range from -40°C to 95°C

.

High linearity, 17.5dBm output -1dB compression point 100MHz

.

37dB attenuator range and 150ps group delay variation within ±50MHz

.

Total supply current of 81mA CTRL1=1, CTRL2=1, 71mA CTRL1=1, CTRL2=0 & 5.7mA CTRL1=0, CTRL2=0

.

0.25dB gain variation over 100MHz bandwidth

.

Analogue attenuator controlled with external voltage and alarm circuit with adjustable threshold

.

Gain vs temperature of -0.004dB/°C and maximum gain variation versus frequency of 0.25dB

.

Power-down capabilities

.

Average gain control slope of 19.5dB/V and maximum gain control slope of 25dB/V
