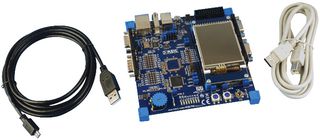

LPC1758 Microcontroller Evaluation Board 12MHz/100MHz CPU 64KB RAM 512KB Flash

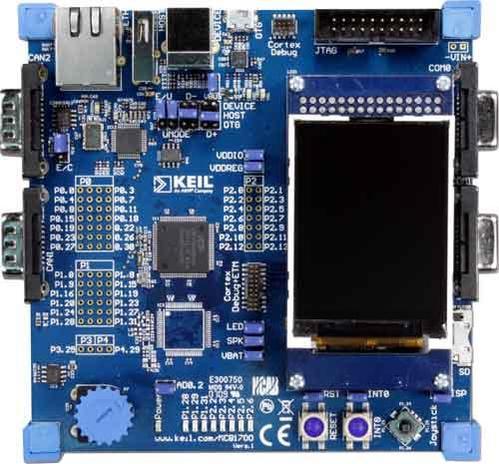

is a Keil MCB1700 evaluation boards which enables to create and test working programs based on the NXP LPC1758 ARM Cortex-M3 processor based device. The prototyping area provides blocks for adding components and connecting the address, data, and I/O ports. The NXP LPC1758 microcontroller provided with the MCB1700 board is a high end LPC17xx device with advanced ADC, CAN and USB capabilities. A 12MHz crystal provides the clock signal for the CPU. The JTAG Interface connector provides debugging and emulator support for the NXP LPC17xx device. The JTAG Interface allows application debugging and programming of on chip and off chip flash devices. The Cortex debug connector provides support for Serial Wire JTAG feature of the Cortex-M3 device. Board connects the on chip serial UART to the ST3232, which converts the logic signals to RS232 voltage levels.
- .
- 100MHz LPC1758 ARM Cortex-M3 processor based MCU in 80 pin LQFP
- .
- On chip memory of 512KB flash & 64KB RAM
- .
- Colour QVGA TFT LCD
- .
- 10/100 ethernet port
- .
- USB 2.0 full speed, 2 CAN interfaces, 2 serial ports, SD/MMC card interface
- .
- 5 position joystick and push button
- .
- Analog voltage control for ADC input
- .
- Amplifier and speaker
- .
- 52 GPIO pins
- .
- Debug interface: 20 pin JTAG, 10 pin Cortex debug, 20 pin Cortex debug + ETM trace
