LPC1114FBD48/302 Microcontroller Evaluation Board 50MHz CPU 8KB RAM 32KB Flash

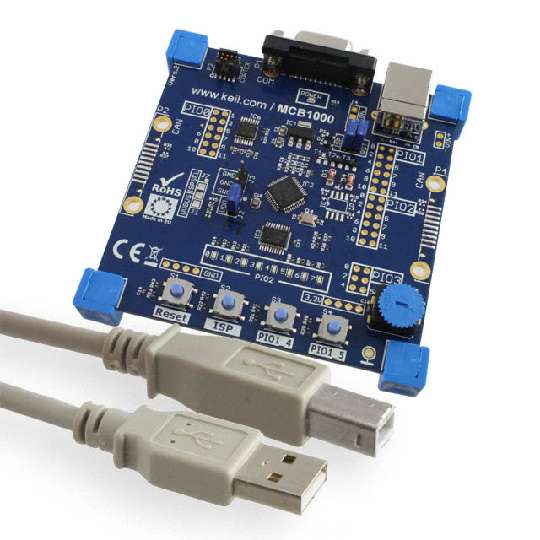

is a Keil MCB1000 evaluation board which enables to create and test working programs based on the NXP LPC1114FBD48/302 ARM Cortex-M0 processor based device. The NXP LPC1114FBD48/302 microcontroller provided with the MCB1000 board is a high end Cortex-M device with advanced ADC and serial I/O capabilities. This device include a serial wire debug interface for downloading and debugging. They do not support a JTAG interface. A 12MHz crystal provides the clock signal for the CPU. The Cortex debug connector provides support for serial wire debug feature of the Cortex-M device. The MCB1000 board connects the on chip serial UART to the ST3232 which converts the logic signals to RS232 voltage levels.
- .
- 50MHz ARM Cortex-M0 processor based MCU in 48 pin LQFP
- .
- Serial interface
- .
- Potentiometer for ADC input
- .
- Up to 42 GPIO
- .
- 8 User LEDs + power
- .
- 4 push buttons 2 GPIO, ISP, & reset
- .
- Power via USB connector
- .
- 10 pin Cortex debug interface connector
Do not attach additional power supplies such as batteries while the USB supplies power to the MCB1000. This may harm the PC.
