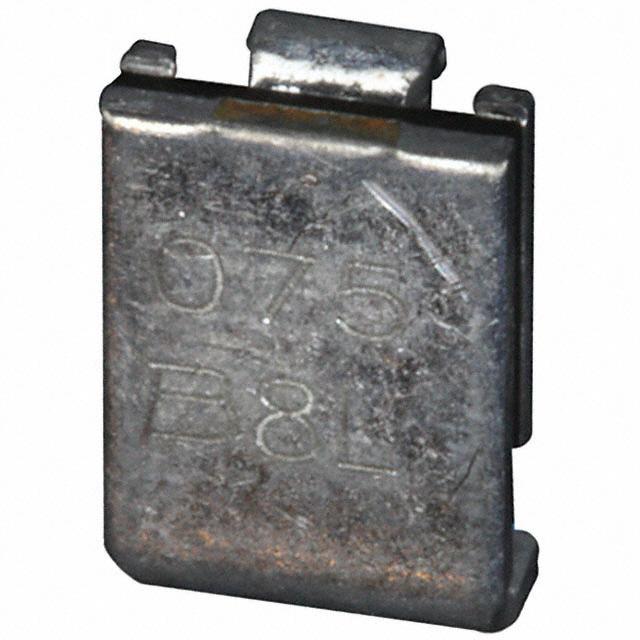

PTC Resettable Fuse 0.75Ahold 1.5Atrip 30V 80A 1.7W 0.3s 0.23Ω SMD Solder Pad 7.98 X 5.44 X 3.18mm T/R
This PTC resettable fuse from Bourns is ideal for low current and low voltage ratings. This device has a maximum current rating of 80. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 7.98Max mm long, 3.18Max mm tall and 5.44Max mm deep.
额定电压DC 30.0 V
额定电压AC 30.0 V
工作电压 30 VDC
跳闸时间 0.3 s
额定电流 80 A
耗散功率 1.7 W
电阻 1 Ω
保持电流 750 mA
跳闸电流 1.5 A
额定电流Max 80 A
保持电流Max 750 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 V
额定电压 30 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 7.36 mm
宽度 5.44 mm
高度 3.18 mm
脚长度 430 µm
封装 SMD-2
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536100040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MF-SM075-2-99 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MF-SM075-2 伯恩斯 | 类似代替 | MF-SM075-2-99和MF-SM075-2的区别 |
SMD075F-2 力特 | 功能相似 | MF-SM075-2-99和SMD075F-2的区别 |
MF-SM075 伯恩斯 | 功能相似 | MF-SM075-2-99和MF-SM075的区别 |
