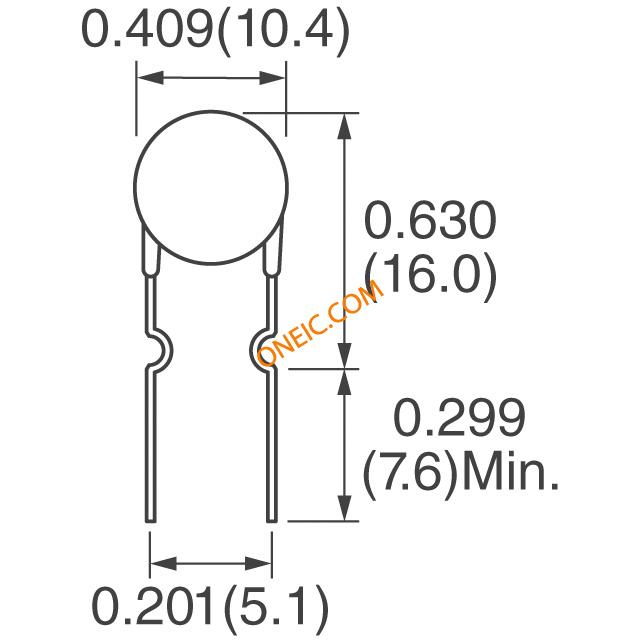

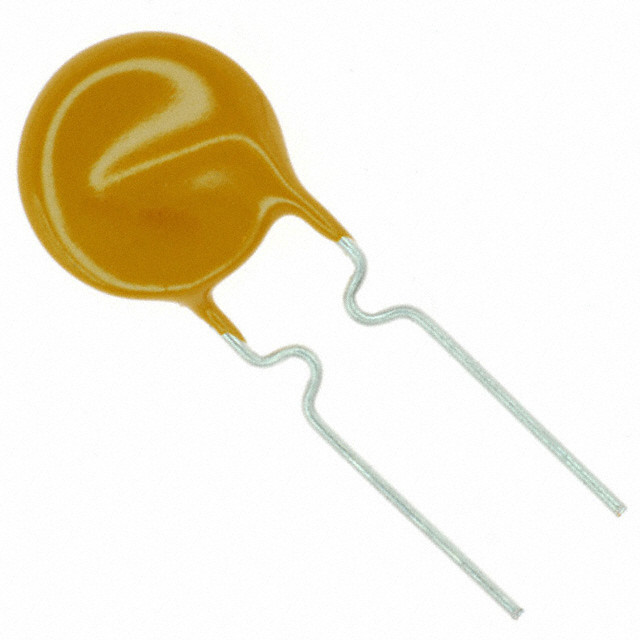

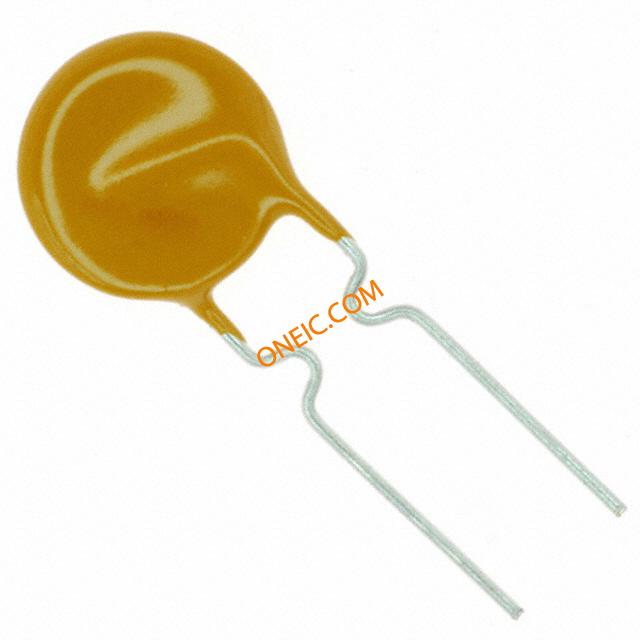

PTC Resettable Fuse 0.75Ahold 1.5Atrip 60V 40A 0.9W 6.3s 0.18Ω Radial 10.4 X 3.1mm T/R

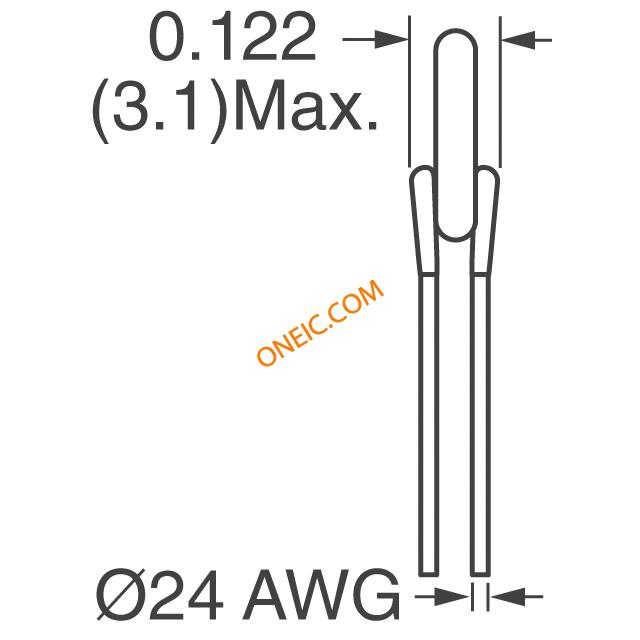

Do you need a more convenient and quicker way for your protected equipment to be restored into operation after a fuse burns out? Then this PTC resettable fuse from Bourns is perfect for you! This part has a lead diameter of 0.51 mm. This device has a maximum current rating of 40. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product"s terminal pitch is 5.1nom mm. This product is 3.1Max mm deep.
工作电压 60.0 V
跳闸时间 6.3 s
额定电流 40 A
耗散功率 0.9 W
电阻 0.4 Ω
保持电流 0.75 A
跳闸电流 1.5 A
额定电流Max 40 A
保持电流Max 750 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 60 V
安装方式 Through Hole
封装 Radial
封装 Radial
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536100040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MF-R075-2-99 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MF-R075-0-99 伯恩斯 | 完全替代 | MF-R075-2-99和MF-R075-0-99的区别 |
MF-R075-AP-99 伯恩斯 | 完全替代 | MF-R075-2-99和MF-R075-AP-99的区别 |
MF-R075 伯恩斯 | 类似代替 | MF-R075-2-99和MF-R075的区别 |
