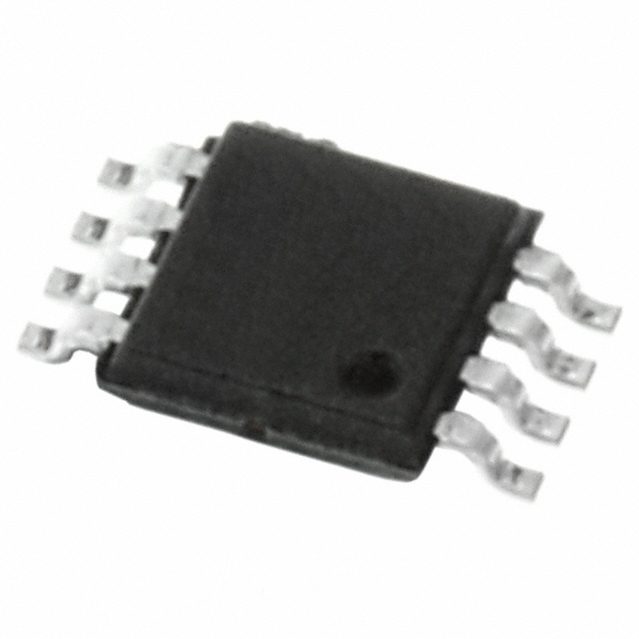

64Kb、TSSOP8、串行I2C、卷盘包装
Description
The M24C64 is a 64-Kbit I2C-compatible EEPROM Electrically Erasable PROgrammable Memory organized as 8 K × 8 bits.
Over an ambient temperature range of -40 °C / +85 °C, the M24C64-W can operate with a supply voltage from 2.5 V to 5.5 V, the M24C64-R can operate with a supply voltage from 1.8 V to 5.5 V, and the M24C64-F and M24C64-DF can operate with a supply voltage from 1.7 V to 5.5 V the M24C64-F can also operate down to 1.6 V, under some restricting conditions.
The M24C64-D offers an additional page, named the Identification Page 32 bytes. The Identification Page can be used to store sensitive application parameters which can be later permanently locked in Read-only mode.
Features
• Compatible with all I2C bus modes:
– 1 MHz
– 400 kHz
– 100 kHz
• Memory array:
– 64 Kbit 8 Kbytes of EEPROM
– Page size: 32 bytes
– Additional Write lockable page M24C64-D order codes
• Single supply voltage:
– 1.7 V to 5.5 V over –40 °C / +85 °C
– 1.6 V to 5.5 V over 0 °C / +85 °C
• Write:
– Byte Write within 5 ms
– Page Write within 5 ms
• Random and sequential Read modes
• Write protect of the whole memory array
• Enhanced ESD/Latch-Up protection
• More than 4 million Write cycles
• More than 200-year data retention
频率 1 MHz
供电电流 3 mA
针脚数 8
时钟频率 1 MHz
存取时间 450 ns
存取时间Max 450 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 8
封装 TSSOP-8
封装 TSSOP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
M24C64-RDW6TP ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
M24C64-RDW6P 意法半导体 | 类似代替 | M24C64-RDW6TP和M24C64-RDW6P的区别 |
AT24C64A-10TI-1.8-T 微芯 | 类似代替 | M24C64-RDW6TP和AT24C64A-10TI-1.8-T的区别 |
24LC64-I/ST 微芯 | 功能相似 | M24C64-RDW6TP和24LC64-I/ST的区别 |
