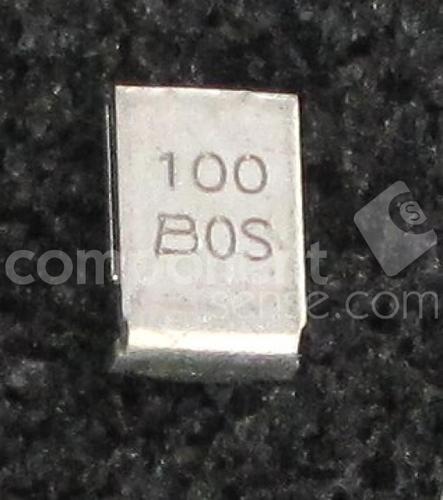

MF-SM 系列 30 V 1.1 A 2.2 A Trip 表面贴装 PTC 自恢复 保险丝
An automatically resetting fuse like this PTC resettable fuse from Bourns is ideal for quickly restoring protected equipment into operation after a fuse burns out. This device has a maximum current rating of 80. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 7.98Max mm long, 3Max mm tall and 5.44Max mm deep.
额定电压DC 30.0 V
额定电压AC 15.0 V
工作电压 30.0 V
跳闸时间 500 ms
额定电流 1.00 A
耗散功率 1.7 W
电阻 0.48 Ω
保持电流 1.1 A
跳闸电流 2.2 A
额定电流Max 80 A
保持电流Max 1.1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 V
额定电压 30 V
安装方式 Surface Mount
封装 SMD-2
长度 7.98 mm
宽度 5.44 mm
高度 3 mm
脚长度 430 µm
封装 SMD-2
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536100040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MF-SM100-2-99 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MF-SM100-2 伯恩斯 | 类似代替 | MF-SM100-2-99和MF-SM100-2的区别 |
MF-SM100 伯恩斯 | 类似代替 | MF-SM100-2-99和MF-SM100的区别 |
AHS080-2018-2 泰科 | 功能相似 | MF-SM100-2-99和AHS080-2018-2的区别 |
