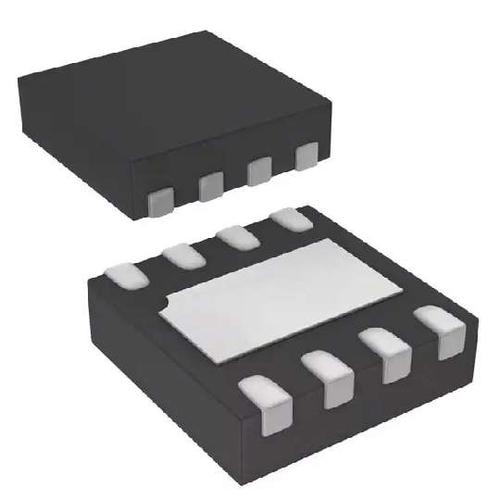

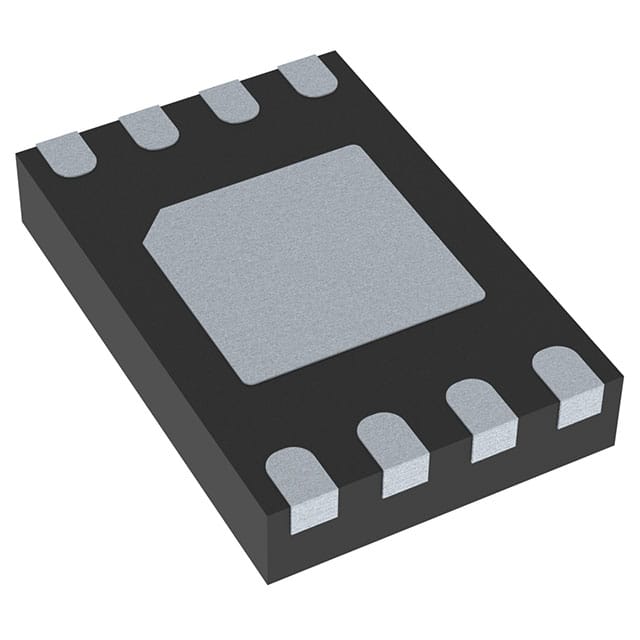

M24C64-FMC6TG

64 - Kbit的串行I²C总线EEPROM 64-Kbit serial I2C bus EEPROM

Description

The M24C64 is a 64-Kbit I2C-compatible EEPROM Electrically Erasable PROgrammable Memory organized as 8 K × 8 bits.

Over an ambient temperature range of -40 °C / +85 °C, the M24C64-W can operate with a supply voltage from 2.5 V to 5.5 V, the M24C64-R can operate with a supply voltage from 1.8 V to 5.5 V, and the M24C64-F and M24C64-DF can operate with a supply voltage from 1.7 V to 5.5 V the M24C64-F can also operate down to 1.6 V, under some restricting conditions.

The M24C64-D offers an additional page, named the Identification Page 32 bytes. The Identification Page can be used to store sensitive application parameters which can be later permanently locked in Read-only mode.

Features

• Compatible with all I2C bus modes:

   – 1 MHz

   – 400 kHz

   – 100 kHz

• Memory array:

   – 64 Kbit 8 Kbytes of EEPROM

   – Page size: 32 bytes

   – Additional Write lockable page M24C64-D order codes

• Single supply voltage:

   – 1.7 V to 5.5 V over –40 °C / +85 °C

   – 1.6 V to 5.5 V over 0 °C / +85 °C

• Write:

   – Byte Write within 5 ms

   – Page Write within 5 ms

• Random and sequential Read modes

• Write protect of the whole memory array

• Enhanced ESD/Latch-Up protection

• More than 4 million Write cycles

• More than 200-year data retention
