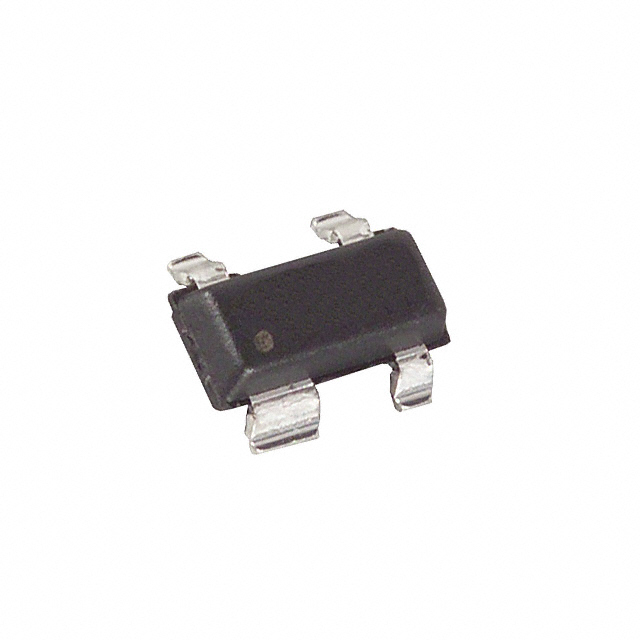

MAXIM INTEGRATED PRODUCTS MAX4790EUS+T 芯片, 功率负载开关
限流 稳压器 - 200mA SOT-143-4
立创商城:
MAX4790EUS+T
得捷:
IC SWITCH 1X1 SOT143-4
贸泽:
Power Switch ICs - Power Distribution 200/250/300mA Crnt Limit Switch
e络盟:
芯片, 功率负载开关
安富利:
* Guaranteed Current Limit: 200mA, 250mA, 300mA * Thermal-Shutdown Protection * Reverse Current Protection * 0.2Ω On-Resistance * 14ms Guaranteed Blanking Time * Active-Low FLAG Function MAX4789/MAX4791/MAX4793 * 80µA Supply Current * 8µA Latch-Off Current MAX4789/MAX4791/MAX4793 * 0.01µA Shutdown Current * 2.3V to 5.5V Supply Range * Undervoltage Lockout * Fast Current-Limit Response Time 5µs * TDFN and SOT23/SOT143 Packages
Chip1Stop:
Current Limit SW 1-IN 1-OUT 2.3V to 5.5V 0.3A 4-Pin3+Tab SOT-143 T/R
Newark:
# MAXIM INTEGRATED PRODUCTS MAX4790EUS+T POWER LOAD SWITCH, 5.5V, SOT-143-4
Win Source:
IC ANALOG SWITCH 1X1 SOT143-4
输出接口数 1
输入电压DC 5.50 V
输出电流 200 mA
针脚数 4
耗散功率 320 mW
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 2.3 V
输入电压 5.5 V
安装方式 Surface Mount
引脚数 4

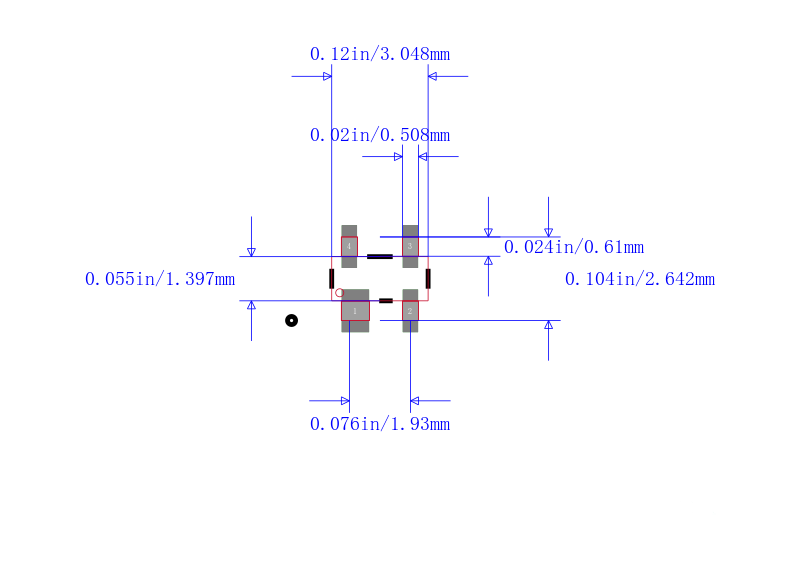

封装 SOT-143-4
封装 SOT-143-4
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Consumer Electronics, Signal Processing, 信号处理, 便携式器材, Portable Devices, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
