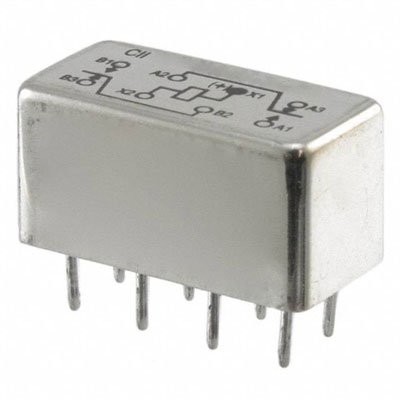

Electromechanical Relay Double Pole Double Throw DPDT 2A 26.5VDC 700Ω Through Hole
Electromechanical Relay 26.5VDC 700Ohm 2A DPDT 20.57x10.41x10.41mm THT Half Size High Performance Relay
Product Highlights
HFW Half-Size Relay Series
Input Voltage = 26.5 VDC
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 2 Amps.
Non Polarized, Monostable Coil Magnetic System
艾睿:
Electromechanical Relay 26.5VDC 700Ohm 2A DPDT 20.57x10.41x10.41mm THT Half Size High Performance Relay
Jameco:
Electromechanical Relay Double Pole Double Throw DPDT 2A 26.5VDC 700Ohm Through Hole
Chip1Stop:
Electromechanical Relay 26.5VDC 700Ohm 2A DPDT 20.57x10.41x10.41mm THT Half Size High Performance Relay
Verical:
Electromechanical Relay 26.5VDC 700Ohm 2A DPDT 20.57x10.41x10.41mm THT Half Size High Performance Relay
MASTER:
Electromechanical Relay 26.5VDC 700Ohm 2A DPDT 20.57x10.41x10.41mm THT Half Size High Performance Relay
Online Components:
Electromechanical Relay 26.5VDC 700Ohm 2A DPDT 20.57x10.41x10.41mm THT Half Size High Performance Relay
额定电压DC 28 V
触点额定电流 2 A
线圈电压 26.5 V
线圈电流 37.86 mA
线圈电阻 700 Ω
额定电流Max 2 A
线圈电压DC 26.5 V
工作温度Max 125 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 8
封装 DIP
长度 20.57 mm
宽度 10.41 mm
高度 10.41 mm
封装 DIP
触点材质 Silver, Gold
工作温度 -65℃ ~ 125℃
产品生命周期 Unknown
RoHS标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
