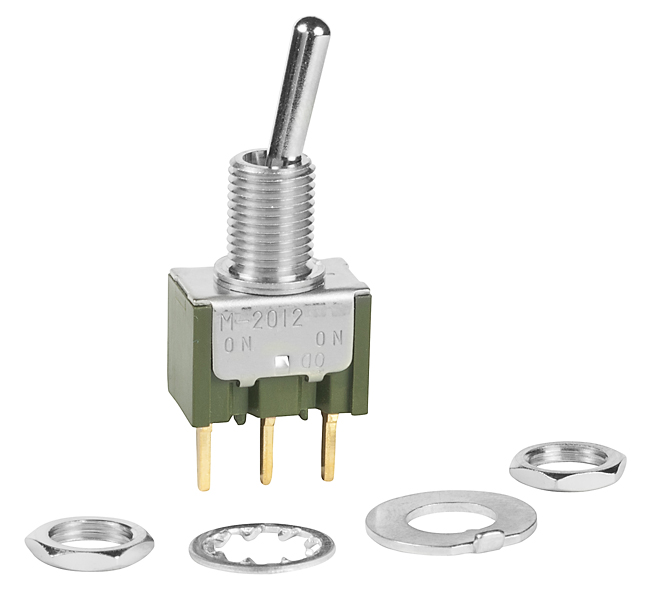

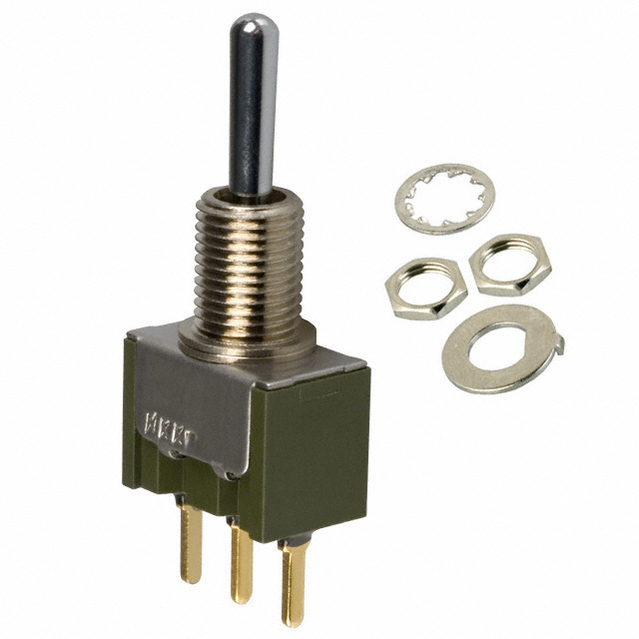

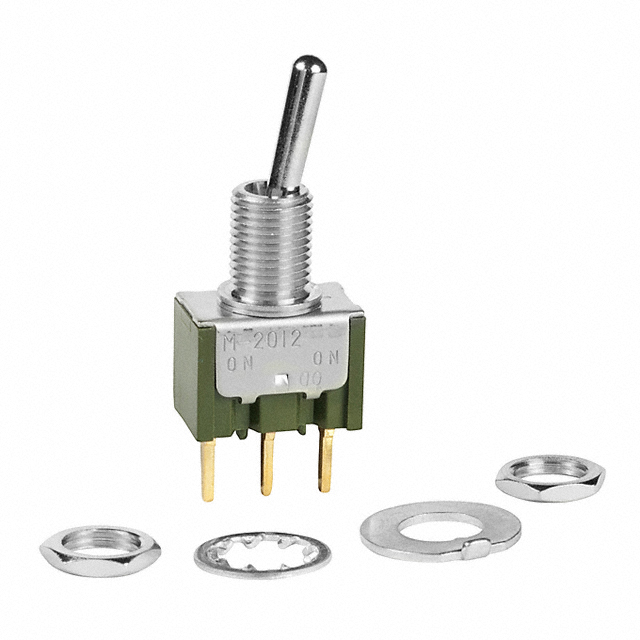

NKK SWITCHES M2012SS1G03 拨动开关, SPDT, 0.1A, 28VAC
拨动 SPDT 面板安装
得捷:
SWITCH TOGGLE SPDT 0.4VA 28V
e络盟:
NKK SWITCHES M2012SS1G03 拨动开关, SPDT, 0.1A, 28VAC
艾睿:
The M2012SS1G03 toggle switch from NKK Switches allows you to control the status of your project. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The M2012SS1G03 toggle switch has a PC pin termination style. This product is 13 mm long, 30.35 mm tall and 8 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
SWITCH, SPDT ON NONE ON, .413 IN BAT
Chip1Stop:
Switch Toggle ON None ON SPDT Small Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Threads
Verical:
Switch Toggle ON None ON SPDT Small Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Threads
Newark:
# NKK SWITCHES M2012SS1G03 Toggle Switch, Non Illuminated, SPDT, On-None-On, Panel, 100 mA
Powell:
MINIATURE TOGGLE/MULTI-FUNCTION
触点电镀 Gold
额定电压DC 28 V
接触器类型 Standard
额定电压AC 28 V
排数 1
方向 Vertical
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
额定功率Max 0.4 W
工作温度Max 85 ℃
工作温度Min -30 ℃
接触电阻Max 20 mΩ
安装方式 PCB, Panel
长度 13 mm
宽度 8 mm
高度 30.35 mm
触点材质 Copper
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
M2012SS1G03 NKK 日本长野 | 当前型号 | 当前型号 |
7101SYCBE C&K Components | 功能相似 | M2012SS1G03和7101SYCBE的区别 |
