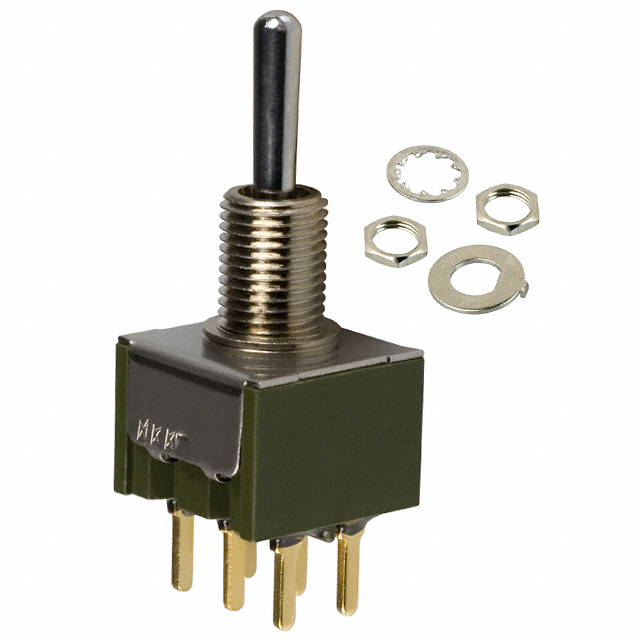

NKK SWITCHES M2022SS1G03 拨动开关, DPDT, 0.1A, 28VAC
拨动 DPDT 面板安装
得捷:
SWITCH TOGGLE DPDT 0.4VA 28V
e络盟:
拨动开关, DPDT, 0.1A, 28VAC
艾睿:
The M2022SS1G03 toggle switch from NKK Switches allows you to control the status of your project. It has a DPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2022SS1G03 toggle switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 13 mm long, 30.35 mm tall and 12.7 mm deep.
Allied Electronics:
Switch; Mini Toggle; DPDT; ON-NONE-ON; .413 Bat Act; No Cap; 0.4A; 28VAC/DC; .250 Str PC
Chip1Stop:
Switch Toggle ON None ON DPDT Small Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Threads
Verical:
Switch Toggle ON None ON DPDT Small Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Threads
Newark:
# NKK SWITCHES M2022SS1G03 Toggle Switch, Non Illuminated, DPDT, On-None-On, Panel, 100 mA
Powell:
MINIATURE TOGGLE/MULTI-FUNCTION
触点电镀 Gold
额定电压DC 28 V
接触器类型 Standard
额定电压AC 28 V
排数 2
方向 Vertical
触点类型 DPDT
额定电流Max 0.1A @28VAC, 28VDC
额定功率Max 0.4 W
工作温度Max 85 ℃
工作温度Min -30 ℃
接触电阻Max 20 mΩ
安装方式 PCB, Panel
长度 13 mm
宽度 12.7 mm
高度 30.35 mm
触点材质 Copper
工作温度 -30℃ ~ 85℃
产品生命周期 50000 Cycles
包装方式 Bulk
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
M2022SS1G03 NKK 日本长野 | 当前型号 | 当前型号 |
7201SYCQE C&K Components | 功能相似 | M2022SS1G03和7201SYCQE的区别 |
7201SYCBE C&K Components | 功能相似 | M2022SS1G03和7201SYCBE的区别 |
100DP1T1B1M2QEH E-Switch | 功能相似 | M2022SS1G03和100DP1T1B1M2QEH的区别 |
