Switch Toggle ON None ON SPDT Locking Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket
拨动 SPDT 通孔
得捷:
SWITCH TOGGLE SPDT 0.4VA 28V
贸泽:
Toggle Switches ON-ON LOCKING LEVER SMOOTH BSHNG BRKT PC
艾睿:

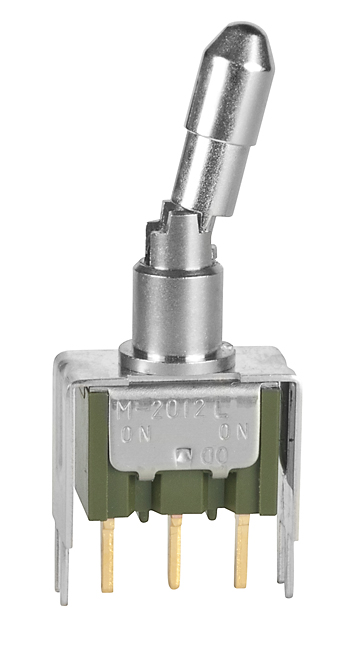

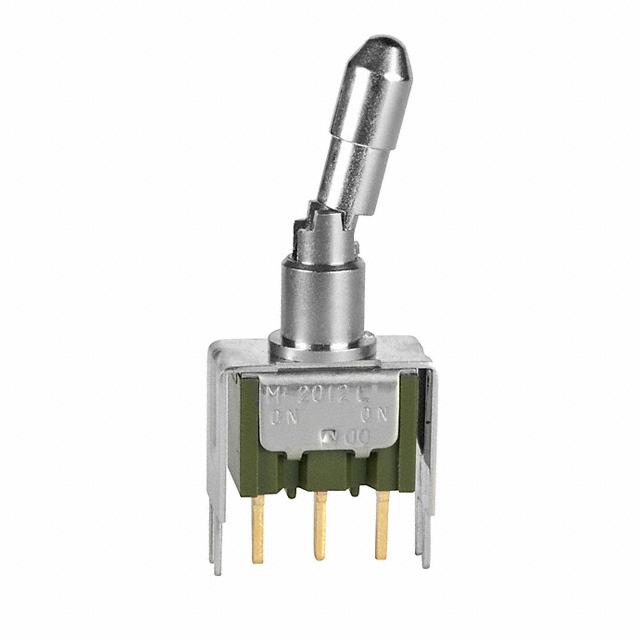

The M2012LL2G13 toggle switch from NKK Switches allows you to control the status of your project. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2012LL2G13 toggle switch has a PC pin termination style. This product is 16.3 mm long, 37.6 mm tall and 8 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
MINIATURE TOGGLE/MULTI-FUNCTION
Chip1Stop:
Switch Toggle ON None ON SPDT Locking Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket
Verical:
Switch Toggle ON None ON SPDT Locking Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket
Powell:
MINIATURE TOGGLE/MULTI-FUNCTION
额定电压DC 28 V
额定电压AC 28 V
额定电流 100 mA
排数 1
额定功率 0.4 VA
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 28 V
接触电阻Max 20 mΩ
安装方式 Through Hole
长度 16.3 mm
宽度 8 mm
高度 37.6 mm
触点材质 Copper
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
