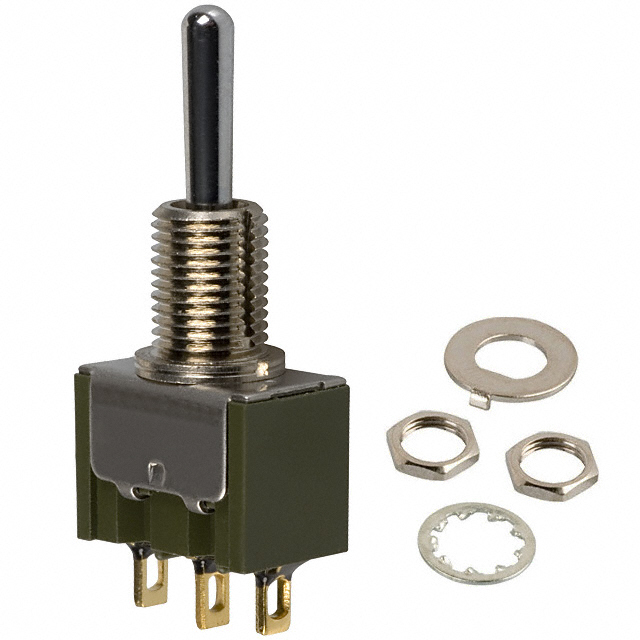

Switch Toggle ON OFF ON SPDT Small Bat Lever Solder Lug 0.1A 28VAC 28VDC 0.4VA Panel Mount with Threads
Series M miniature toggle switches are built to function most anywhere you put them. Antirotation, antijamming design protects contacts from damage due to excessive forces on the actuator. High insulating barriers increase isolation of circuits in multipole devices and provide added protection to contact points. Epoxy sealed terminals prevent entry of solder flux and other contaminants.
触点电镀 Gold
额定电压DC 28 V
接触器类型 Standard
额定电压AC 28 V
排数 1
方向 Vertical
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
额定功率Max 0.4 W
工作温度Max 85 ℃
工作温度Min -30 ℃
接触电阻Max 20 mΩ
安装方式 Panel, Solder Lug
长度 13 mm
宽度 7.90 mm
高度 33.3 mm
触点材质 Copper
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Lead Free
ECCN代码 EAR99
