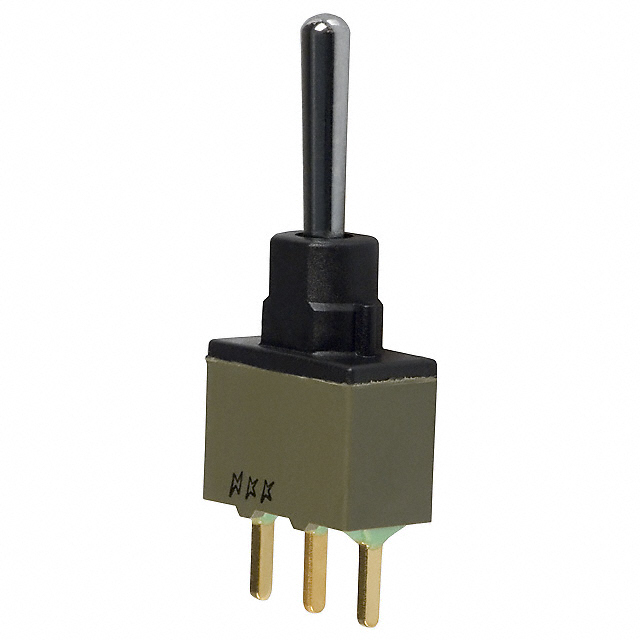

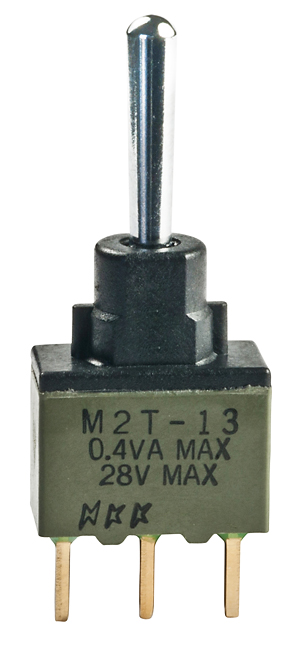

NKK SWITCHES M2T13SA5G03 拨动开关, SPDT, 0.1A, 28VAC
Series M2 process sealed miniature pushbuttons have upper and lower case halves ultrasonically welded together plus epoxy sealed terminals and an o-ring seal at the top of the bushing to prevent entry of flux, solvents and other contaminants during build processes. The sealed construction lends itself to real world applications too.
得捷:
SWITCH TOGGLE SPDT 0.4VA 28V
贸泽:
Toggle Switches SPDT ON-OFF-ON
e络盟:
NKK SWITCHES M2T13SA5G03 拨动开关, SPDT, 0.1A, 28VAC
艾睿:
The process sealed M2T13SA5G03 toggle switch from NKK Switches comes with minimal lag when toggling a component of your circuit. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The M2T13SA5G03 toggle switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 12.7 mm long, 29.55 mm tall and 6.6 mm deep.
Allied Electronics:
Switch, Toggle, Subminiature, Washable, SPDT, On-Off-On, Straight PC, Gold
富昌:
MINIATURE TOGGLE/PC
Chip1Stop:
Switch Toggle ON OFF ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount
Verical:
Switch Toggle ON OFF ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount
Newark:
# NKK SWITCHES M2T13SA5G03 Toggle Switch, Non Illuminated, SPDT, On-Off-On, Panel, 100 mA
Powell:
MINIATURE TOGGLE/PC
触点电镀 Gold
额定电压DC 28 V
接触器类型 Standard
额定电压AC 28 V
额定电流 100 mA
排数 1
额定功率 0.4 VA
方向 Vertical
触点类型 SPDT
针脚数 3
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 28 VDC
接触电阻Max 20 mΩ
安装方式 Through Hole
长度 12.7 mm
宽度 6.6 mm
高度 29.55 mm
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
