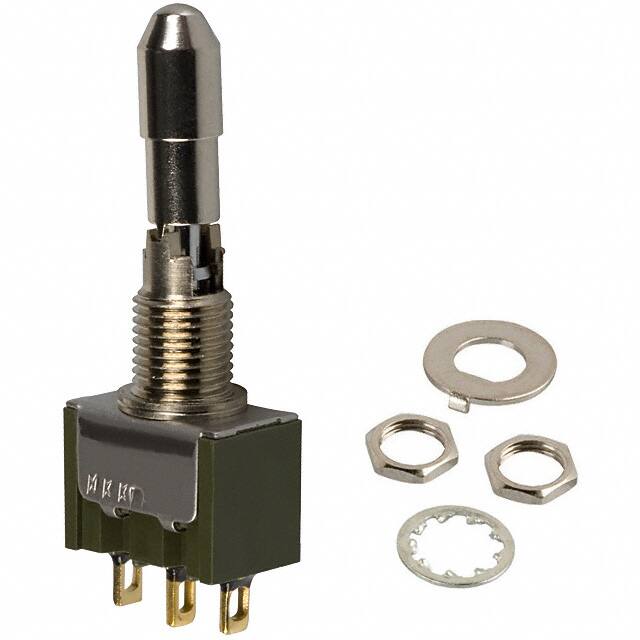

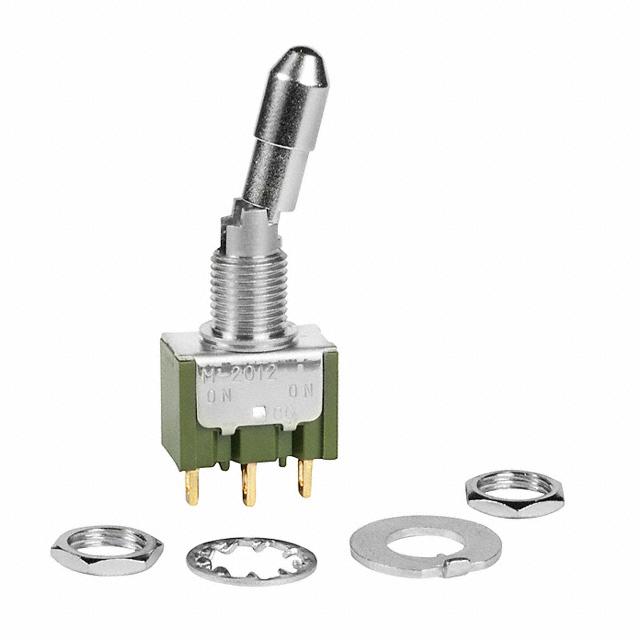

M2012LL1G01

NKK SWITCHES  M2012LL1G01  拨动开关, SPDT, 0.1A, 28VAC

Series M miniature toggle switches are built to function most anywhere you put them. Antirotation, antijamming design protects contacts from damage due to excessive forces on the actuator. High insulating barriers increase isolation of circuits in multipole devices and provide added protection to contact points. Epoxy sealed terminals prevent entry of solder flux and other contaminants.

得捷:
SWITCH TOGGLE SPDT 0.4VA 28V

贸泽:
拨动开关 ON-NONE-ON SPDT

e络盟:
开关, 拨动, SPDT, 0.1A, 28VAC

艾睿:
This M2012LL1G01 toggle switch from NKK Switches is the best at minimizing lag between switches in your design. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The M2012LL1G01 toggle switch has a solder lug termination style. This product is 13 mm long, 40.1 mm tall and 8 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.

Allied Electronics:
Switch, Toggle; SPDT On None On; 0.4VA 28VAC; 0.201in. Dia. Lock Lever; Solder Lug

Chip1Stop:
Switch Toggle ON None ON SPDT Locking Lever Solder Lug 0.1A 28VAC 28VDC 0.4VA Panel Mount with Threads

Verical:
Switch Toggle ON None ON SPDT Locking Lever Solder Lug 0.1A 28VAC 28VDC 0.4VA Panel Mount with Threads

Newark:
# NKK SWITCHES  M2012LL1G01  Toggle Switch, Non Illuminated, SPDT, On-None-On, Panel, 100 mA

Powell:
TOGGLE SW
