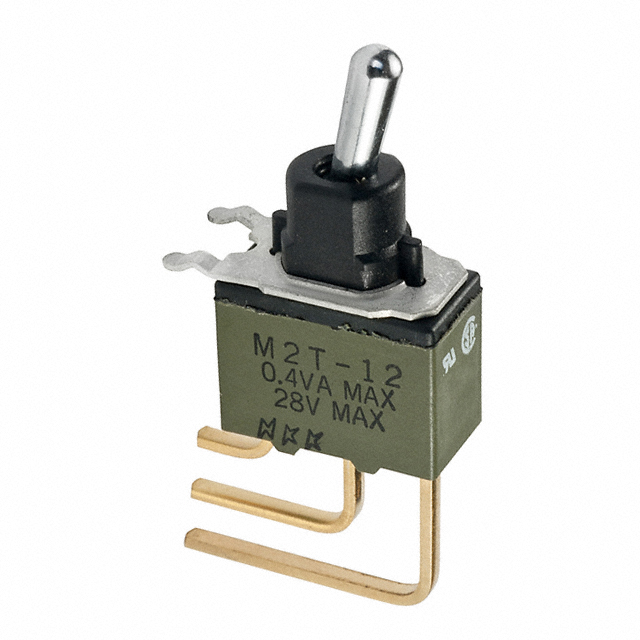

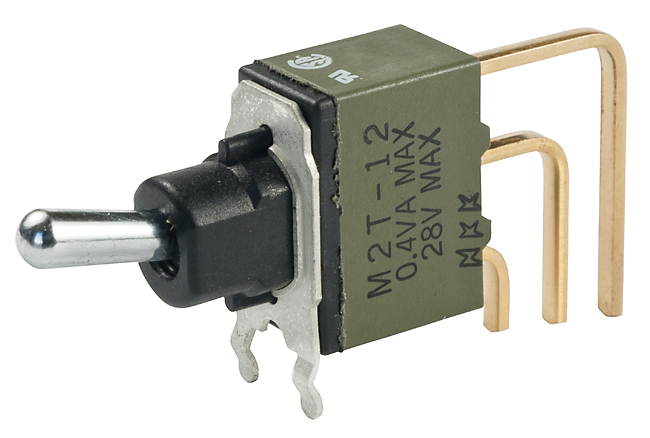

M2T12S4A5G40

NKK SWITCHES  M2T12S4A5G40  拨动开关, SPDT, 0.1A, 28VAC

Series M2 process sealed miniature pushbuttons have upper and lower case halves ultrasonically welded together plus epoxy sealed terminals and an o-ring seal at the top of the bushing to prevent entry of flux, solvents and other contaminants during build processes. The sealed construction lends itself to real world applications too.

得捷:
SWITCH TOGGLE SPDT 0.4VA 28V

贸泽:
Toggle Switches SPDT ON-NONE-ON

e络盟:
拨动开关, SPDT, 0.1A, 28VAC

艾睿:
This compact process sealed M2T12S4A5G40 toggle switch from NKK Switches makes it possible to turn on and off certain parts of your circuits. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The M2T12S4A5G40 toggle switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 7.2 mm long, 12.7 mm tall and 27.31 mm deep.

Allied Electronics:
Switch, Toggle, Subminiature, Washable, SPDT, On-None-On, Vertical PC, Gold

富昌:
M2T Series SPDT On None On Vertical PC Bat Lever Double Flatted Bushing Toggle

Chip1Stop:
Switch Toggle ON None ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket

Verical:
Switch Toggle ON None ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket

Newark:
# NKK SWITCHES  M2T12S4A5G40  Toggle Switch, Non Illuminated, SPDT, On-None-On, Panel, 100 mA

Powell:
MINIATURE TOGGLE/PC
