MICROCHIP MCP2025-500E/SN 芯片, LIN总线收发器, 稳压器, 5V, 8SOIC
The is a LIN Transceiver with voltage regulator. It provides a bidirectional, half-duplex communication physical interface to meet the LIN bus specification Revision 2.1 and SAE J2602-2. The device incorporates a voltage regulator with 5 or 3.3V 70mA regulated power supply output. The device has been designed to meet the stringent quiescent current requirements of the automotive industry and will survive 43V load dump transients and double battery jumps. It provides a physical interface between a microcontroller and a LIN half-duplex bus. It is intended for automotive and industrial applications with serial bus baud rates up to 20kbaud. This device will translate the CMOS/TTL logic levels to LIN logic levels and vice versa. The device offers optimum EMI and ESD performance; it can withstand high voltage on the LIN bus. The device supports two low-power modes to meet automotive industry power consumption requirements.
电源电压DC 6.00V min
输出电压 5 V
输出电流 70 mA
针脚数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 6V ~ 18V
电源电压Max 18 V
电源电压Min 6 V
安装方式 Surface Mount
引脚数 8

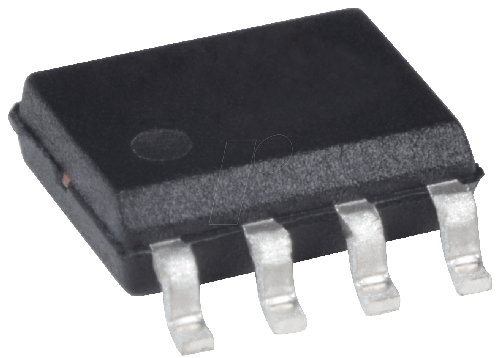

封装 SOIC-8
长度 4.9 mm
宽度 3.9 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 工业, 通信与网络, 车用, Automotive, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP2025-500E/SN Microchip 微芯 | 当前型号 | 当前型号 |
MCP2025-500E/MD 微芯 | 完全替代 | MCP2025-500E/SN和MCP2025-500E/MD的区别 |
MCP2025T-500E/MD 微芯 | 完全替代 | MCP2025-500E/SN和MCP2025T-500E/MD的区别 |
MCP2025T-500E/SN 微芯 | 完全替代 | MCP2025-500E/SN和MCP2025T-500E/SN的区别 |
