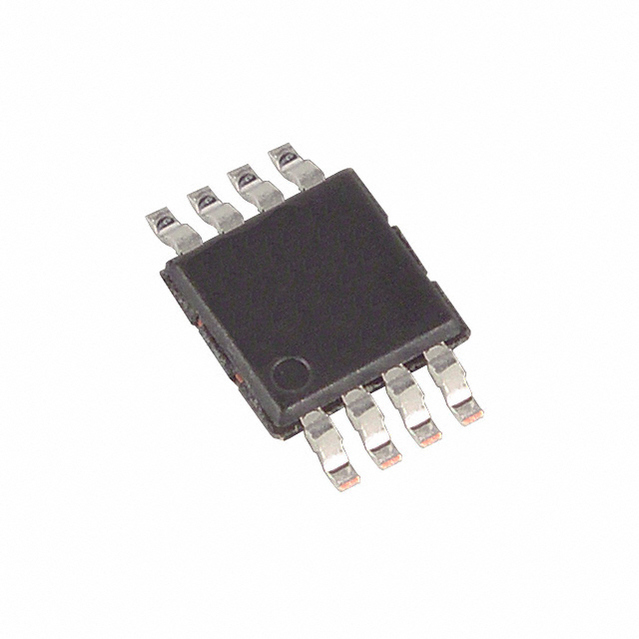

MAX706TEUA+

监控器, 手动, 高电平有效, 1.2 V至5.5 V电源, 3.08 V阈值, 200 ms延迟, µMAX-8

The from Products is a +3V voltage monitoring, low-cost microprocessor µP supervisory circuit in 8 pin µMAX package. This µP supervisory circuit reduces the complexity and number of components required to monitor +3V power-supply levels in +3V to +5V µP systems. This device significantly improves system reliability and accuracy compared to separate ICs or discrete components. This supervisory circuit provides the following four functions, a reset output during power-up, power-down and brownout conditions. An independent watchdog output that goes low if the watchdog input has not been toggled within 1.6s. A 1.25V threshold detector for power-fail warning, low battery detection or for monitoring a power supply other than the main supply and an active-low, manual-reset input. Typically used at battery powered equipment, portable instruments, computers, controllers, intelligent instruments and critical µP power monitoring.

.

Single supply range from 1.2V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Precision supply voltage monitors 3.08V reset-threshold voltage levels

.

200ms reset time delay

.

Debounced TTL/CMOS compatible manual reset input

.

100µA quiescent current

.

Active low reset output signal

.

Voltage monitor for power-fail or low-battery warning

.

Guaranteed RESET active-low assertion to VCC = 1V
