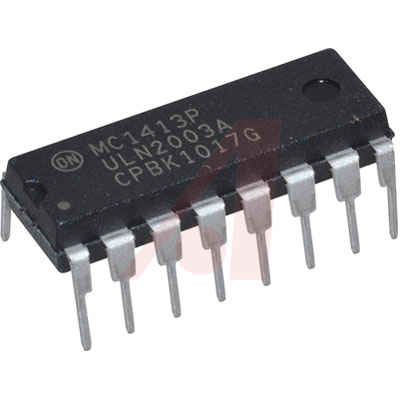

ON SEMICONDUCTOR MC1413BPG 晶体管阵列
The seven NPN Darlington connected transistors in these arrays are well suited for driving lamps, relays, or printer hammers in a variety of industrial and consumer applications. Their high breakdown voltage and internal suppression diodes insure freedom from problems associated with inductive loads. Peak inrush currents to 500 mA permit them to drive incandescent lamps. The MC1413, B with a 2.7 kΩ series input resistor is well suited for systems utilizing a 5.0 V TTL or CMOS Logic.
得捷:
TRANS 7NPN DARL 50V 0.5A 16DIP
贸泽:
达林顿晶体管 High Voltage High Current Darlington
e络盟:
晶体管阵列
艾睿:
Amplify your current with the NPN MC1413BPG Darlington transistor, developed by ON Semiconductor. This product&s;s maximum continuous DC collector current is 0.5 A, while its minimum DC current gain is 1000@350mA@2 V. It has a maximum collector emitter saturation voltage of 1.1@250uA@100mA|1.3@350uA@200mA|1.6@500uA@350mA V. This product comes in rail packaging to keep individual parts separated and protected. It has a maximum collector emitter voltage of 50 V. This Darlington transistor array has an operating temperature range of -40 °C to 85 °C.
Allied Electronics:
High Voltage; High Current Darlington Transistor Array; PDIP16; Pb-Free
安富利:
Trans Darlington NPN 50V 0.5A 16-Pin PDIP Rail
富昌:
MC Series 500 mA 50 V NPN High Current Darlington Transistor Array - PDIP-16
Chip1Stop:
Trans Darlington NPN 50V 0.5A Automotive 16-Pin PDIP Tube
Verical:
Trans Darlington NPN 50V 0.5A Automotive 16-Pin PDIP Rail
Newark:
# ON SEMICONDUCTOR MC1413BPG Bipolar Transistor Array, Darlington, NPN, 50 V, 500 mA, 1000 hFE, DIP
力源芯城:
反相输出达林顿管阵列
Win Source:
TRANS 7NPN DARL 50V 0.5A 16DIP
DeviceMart:
IC TRANS ARRAY DARL HV 16DIP
电源电压DC 30.0 V
额定电流 500 mA
无卤素状态 Halogen Free
输出电压 50 V
输出电流 500 mA
针脚数 16
极性 NPN
击穿电压集电极-发射极 50 V
集电极最大允许电流 0.5A
最小电流放大倍数hFE 1000 @350mA, 2V
直流电流增益hFE 1000
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 30 V
安装方式 Through Hole
引脚数 16
封装 PDIP-16
长度 10 mm
宽度 6.85 mm
高度 3.43 mm
封装 PDIP-16
工作温度 150℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC1413BPG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC1413PG 安森美 | 完全替代 | MC1413BPG和MC1413PG的区别 |
MC1413BDG 安森美 | 类似代替 | MC1413BPG和MC1413BDG的区别 |
MC1413DG 安森美 | 类似代替 | MC1413BPG和MC1413DG的区别 |
