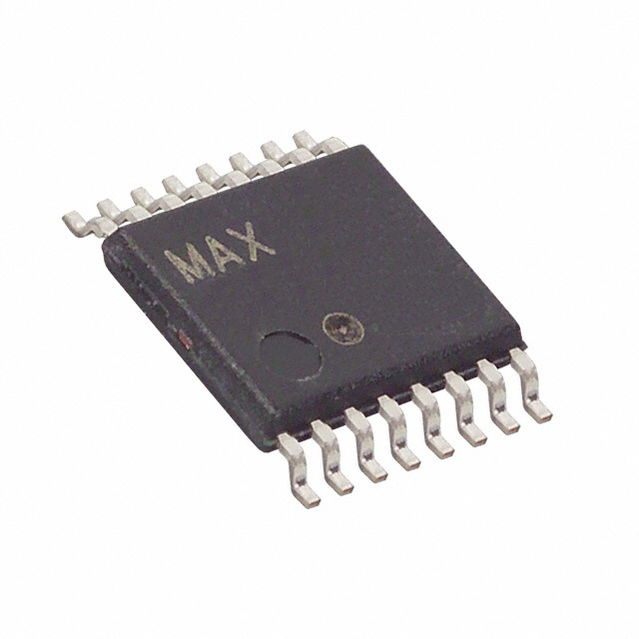

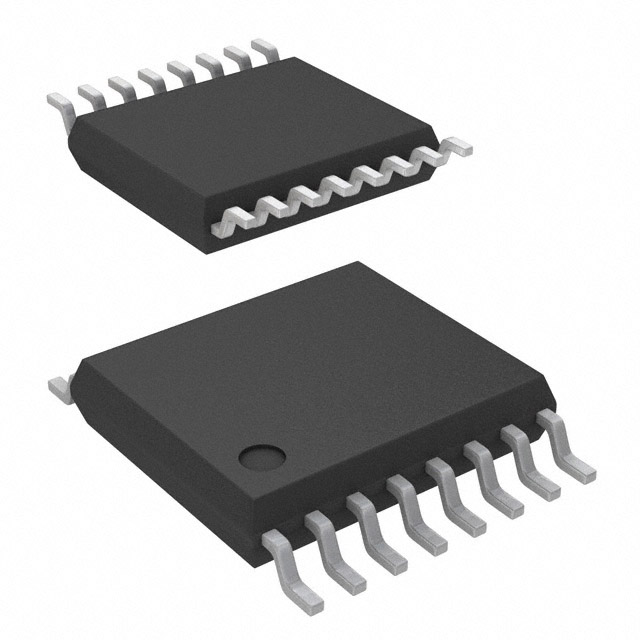

MAXIM INTEGRATED PRODUCTS MAX392EUE+ 模拟开关, 精准, SPST - 常开, 4 放大器, 175 ohm, 3V至15V, ± 3V至± 8V, TSSOP, 16 引脚
The is a precision, quad, SPST analogue switch in 16 pin TSSOP package. It operates from a single +3V to +15V supply or from dual ±3.0V to ±8V supplies and has power consumption of 1µW makes it ideal for battery-operated equipment. With ±5V supplies, the device offers 2ohm max channel to channel matching, 35ohm max on-resistance RON and 4ohm max RON flatness. This switch is also fully specified for single +5V operation with 2ohm max RON match, 60 ohm max RON and 6ohm max flatness. The low voltage switch also offers 5pC max charge injection and ESD protection is greater than 2000V per method 3515.7. Typical applications include sample and hold circuits, guidance and control systems, audio and video switching, ±5V DACs and ADCs, military radios, heads-up displays, PBX, PABX and battery powered applications.
供电电流 1 µA
电路数 4
通道数 4
针脚数 16
耗散功率 457 mW
工作温度Max 85 ℃
工作温度Min 0 ℃
电源电压Max 15 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
长度 5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tube
制造应用 信号处理, Portable Devices, Signal Processing, 通信与网络, 便携式器材, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX392EUE+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX392CUE+ 美信 | 类似代替 | MAX392EUE+和MAX392CUE+的区别 |
MAX392EUE+T 美信 | 类似代替 | MAX392EUE+和MAX392EUE+T的区别 |
MAX392EUE 美信 | 类似代替 | MAX392EUE+和MAX392EUE的区别 |
