MAX4714EXT+T

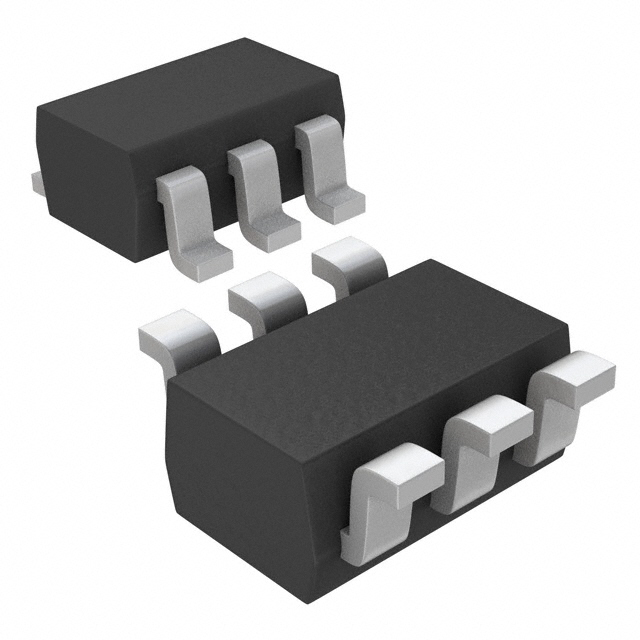

MAXIM INTEGRATED PRODUCTS  MAX4714EXT+T  模拟开关, 低电压, SPDT, 1 放大器, 2.5 ohm, 1.6V 至 3.6V, SC-70, 6 引脚

The is a low voltage, SPDT analogue switch in 6 pin SC-70 package. This low on-resistance, low voltage analogue switch operates from a single supply, it has fast switching speeds of tON = 18ns max and tOFF = 12ns max. It features 0.8ohm max on-resistance RON with 0.18ohm max RON matching and flatness at +3V supply. The digital logic input is 1.8V CMOS compatible when using a single +3V supply. It is used in power routing, audio/video signal routing, battery operated equipment, low voltage data-acquisition systems, communications circuits, PCMCIA cards, cellular phones, modems and hard drives.

.

Supply voltage range is 1.6V to 3.6V

.

Operating temperature range from -40°C to 85°C

.

Low RON of 2.5ohm max at +1.8V supply

.

Pin compatible with MAX4599

.

Features break before make function
