MNR34J5ABJ471

4个电阻排阻 MNR34J5ABJ471 470ΩOhm 41206-470R marking标记R471

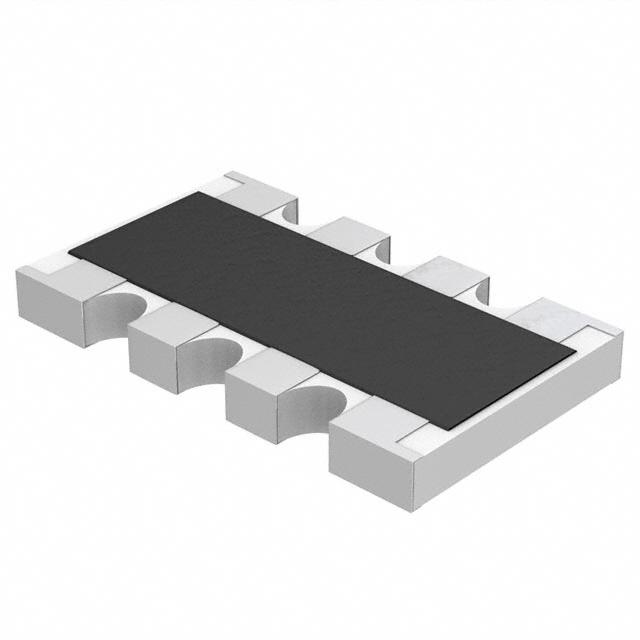

值Resistance| 470Ω/Ohm \---|--- 误差Tolerance| ±5% 电阻器数Number of Resistors| 4 引脚数Number of Pins| 8 功耗Power Dissipation| 125mW Description & Applications| Chip resistor networks MNR34 3216×4 size Features 1 Convex electrodes Easy to check the fillet after soldering is finished. 2 Compatible with a wide range of mounting equipment. Squared corners make it excellent for mounting using image recognition devices. 3 High-density mounting Can be mounted even more densely than four 3216 chips MCR18. Also, the number of parts and cost of mounting have been reduced. 4 ROHM resistors have approved ISO-9001 certification. 描述与应用| 片式电阻网络 MNR34（3216×4大小） 特点 1）凸电极 易焊接完成后，检查圆角。 2）具有广泛的安装设备兼容。 方角使优秀的安装使用图像识别装置。 3）高密度安装可比四3216芯片（MCR18）安装得更密集。此外，部件的数量和安装成本也降低了。 4）ROHM电阻已通过ISO-9001认证。
