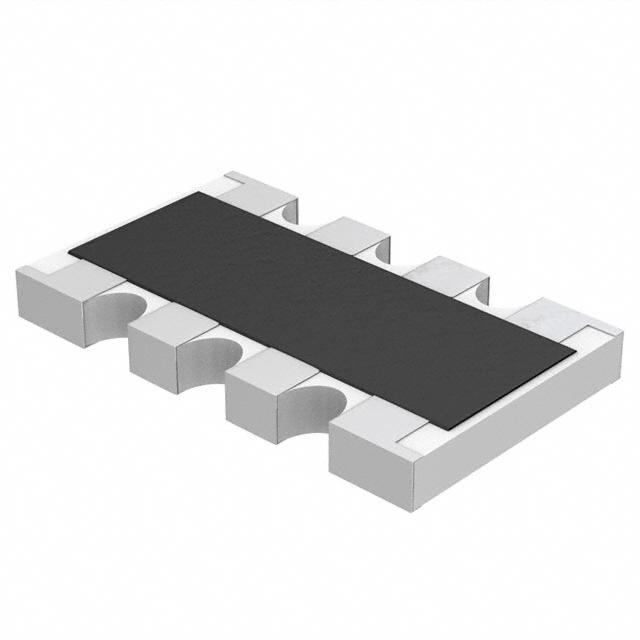

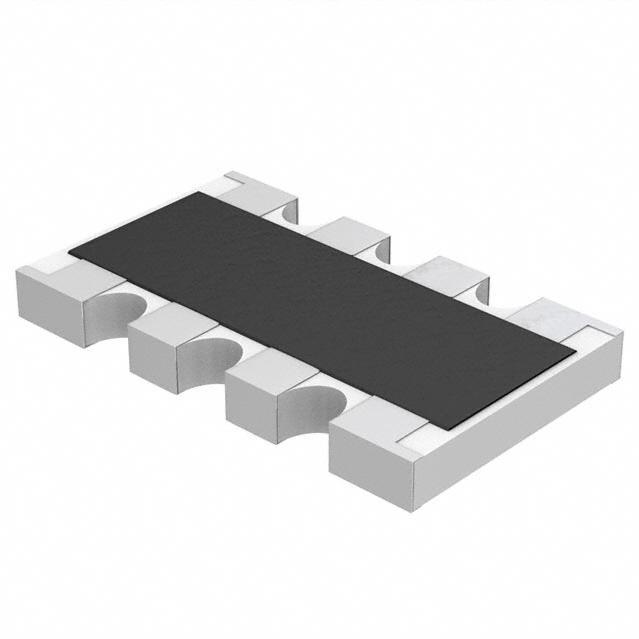

MNR34 系列 4 元件 1.2 kOhm 5 % 外壳 3216 SMD 贴片 电阻网络
1.2k Ohm ±5% 125mW Power Per Element Isolated Resistor Network/Array ±200ppm/°C 2012, Convex, Long Side Terminals
得捷:
RES ARRAY 4 RES 1.2K OHM 2012
艾睿:
Res Thick Film Array 1.2K Ohm 5% ±200ppm/°C ISOL Molded 8-Pin 20124 X 1206 Convex SMD Automotive T/R
富昌:
MNR34 Series 4 Element 1.2 kΩ ±5 % Case 1206 x 4 SMT Chip Resistor Network
Chip1Stop:
Res Thick Film Array 1.2K Ohm 5% 200ppm/ C ISOL Molded 8-Pin 20124 X 1206 Convex SMD Embossed T/R
Verical:
Res Array 1.2K Ohm 5% ±200ppm/C ISOL Epoxy 8-Pin 20124 X 1206 Convex SMD Automotive T/R
触点数 8
额定电压DC 200 V
容差 ±5 %
额定功率 125 mW
耗散功率 0.125 W
电阻 1.2 kΩ
阻值偏差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Surface Mount
引脚数 8
封装 2012
长度 5.2 mm
宽度 3.1 mm
高度 0.55 mm
封装 2012
工作温度 -55℃ ~ 125℃
温度系数 ±200 ppm/℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
制造应用 汽车级 AEC-Q200
RoHS标准 RoHS Compliant
含铅标准 Lead Free
