MAX314FESE+

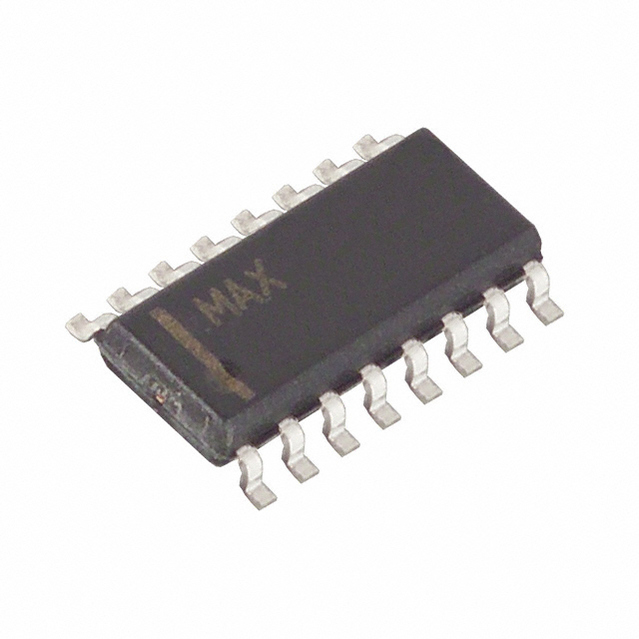

MAXIM INTEGRATED PRODUCTS  MAX314FESE+  模拟开关, 故障保护, SPST, 4 放大器, 25 ohm, 9V 至 36V, ± 4.5V 至 ± 20V, NSOIC, 16 引脚

The is a quad, rail to rail, fault protected, SPST analogue switch in 16 pin NSOIC package. This switch has fault protected inputs and rail to rail signal handling capability, it"s unique operation and construction differ considerably from traditional fault-protection switch with several advantages. The device is pin compatible with industry standard DG314, all analogue signal terminals are protected from overvoltage faults up to ±36V with Power-on and ±40V with power off. It is used in communication systems, data acquisition, avionics and redundant/backup systems.

.

Supply voltage range is 9V to 36V, ±4.5V to ±20V

.

Operating temperature range from -40°C to 85°C

.

No power supply sequencing required

.

All switches off with power off

.

Switches off when V+ is off and V- is on

.

Control line fault protection from V- - 0.3V to V- 40V

.

Two normally closed NC and two normally open NO switches

.

Typical fault response time is 600ns

.

Maximum RON with ±12V supplies is 25ohm at +25°C single supply

.

TTL and CMOS compatible logic inputs
