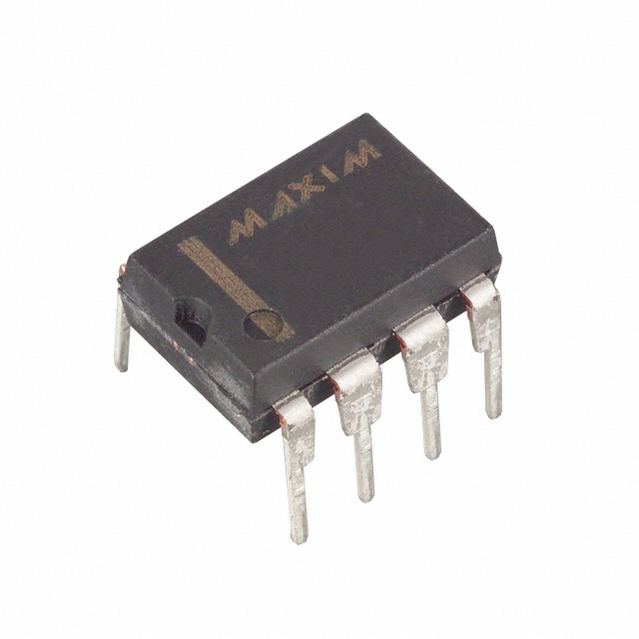

MAXIM INTEGRATED PRODUCTS MAX318CPA+ 模拟开关, 精准, SPST - 常开, 1 放大器, 35 ohm, 10V 至 30V, ± 4.5V 至 ± 20V, DIP, 8 引脚
The is a precision, CMOS analogue switch in 8 pin DIP package. The MAX318CPA+ offer low on-resistance to match within 2ohm between channels and to remain flat over the analogue signal range Δ3ohm max. It offers low leakage less than 250pA at +25°C and less than 6nA at +85°C and fast switching turn-on time less than 175ns and turn-off time less than 145ns. This device has extremely low charge injection, low power consumption and electrostatic discharge ESD greater than ±2000V. The 44V maximum breakdown voltage allows rail to rail analogue signal handling capability. Typical applications include sample and hold circuits, guidance and control systems, heads-up displays, military radios, battery powered systems, PBX and PABX.
触点类型 SPST
供电电流 1 µA
电路数 1
通道数 1
针脚数 8
位数 1
耗散功率 727 mW
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 727 mW
电源电压Max 30 V
电源电压Min 10 V
安装方式 Through Hole
引脚数 8

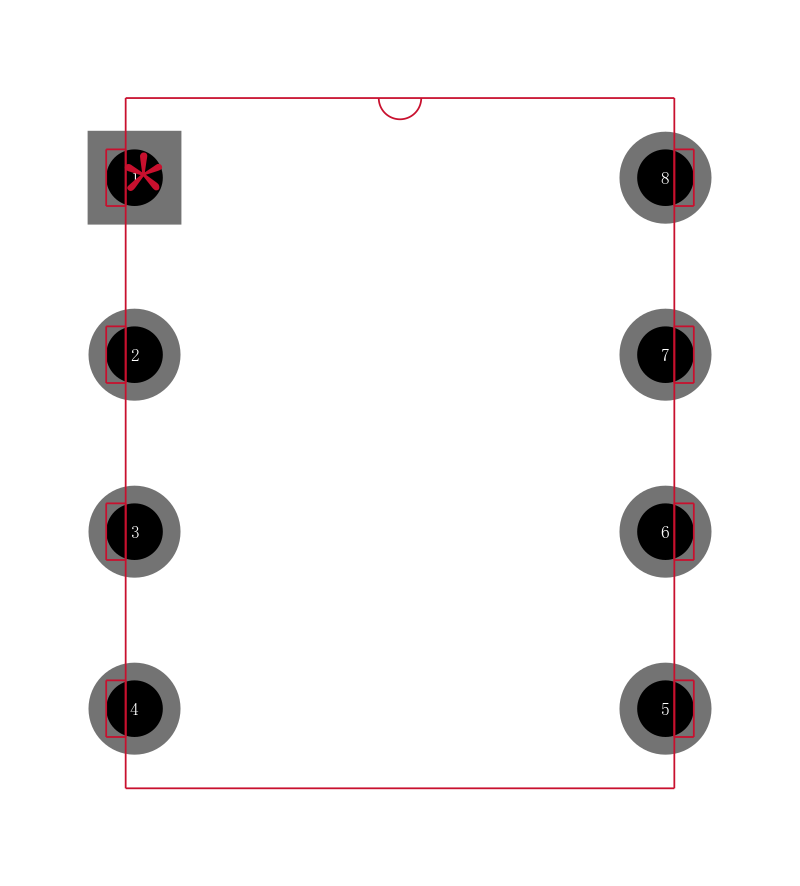

封装 DIP-8
封装 DIP-8
工作温度 0℃ ~ 70℃ TA
产品生命周期 Unknown
包装方式 Tube
制造应用 Portable Devices, 信号处理, Communications & Networking, Signal Processing, 便携式器材, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX318CPA+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
DG418CJ 美信 | 完全替代 | MAX318CPA+和DG418CJ的区别 |
MAX318CPA 美信 | 完全替代 | MAX318CPA+和MAX318CPA的区别 |
MAX318EPA 美信 | 完全替代 | MAX318CPA+和MAX318EPA的区别 |
