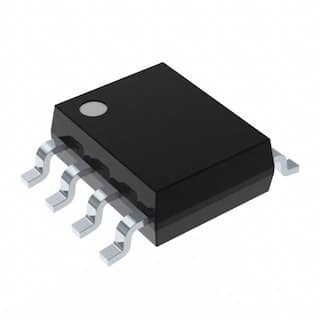

MAXIM INTEGRATED PRODUCTS MAX4541ESA+ 模拟开关, 低电压, SPST - 常开, 2 放大器, 125 ohm, 2.7V 至 12V, NSOIC, 8 引脚
The is a precision, dual SPST analogue switch in 8 pin NSOIC package. It is designed to operate from a single +2.7V to +12V supply and has a low power consumption of 5µW makes it ideal for battery powered equipment. When powered from a +5V supply, the device offers 2ohm max matching between channels, 60 ohm max on-resistance RON and 6ohm max RON flatness. This switch also offers 5pC max charge injection and a minimum of 2000V ESD protection per method 3015.7. Typical applications include battery operated systems, sample and hold circuits, heads-up displays, guidance and control systems, audio and video switching, military radios, +3V/+5V DACs and ADCs, PBX, PABX, cell phones, ultrasound and pagers.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX4541ESA+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX4542ESA+ 美信 | 完全替代 | MAX4541ESA+和MAX4542ESA+的区别 |
MAX4541CSA 美信 | 完全替代 | MAX4541ESA+和MAX4541CSA的区别 |
MAX4541ESA 美信 | 完全替代 | MAX4541ESA+和MAX4541ESA的区别 |
