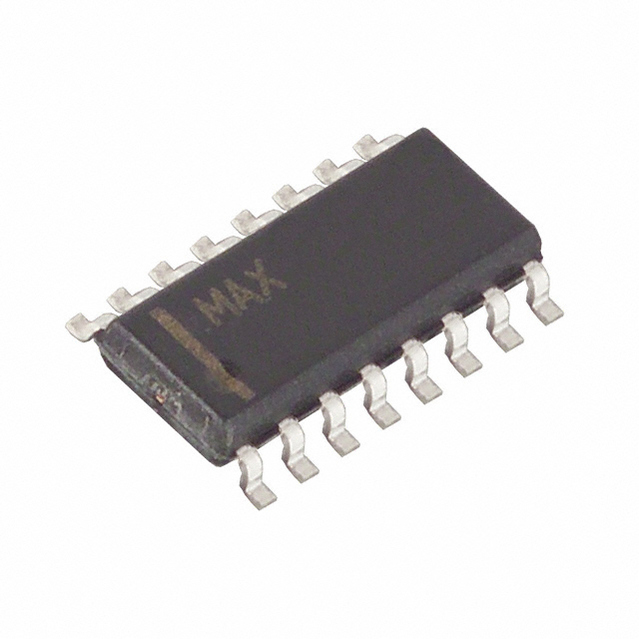

MAX4582CSE+

MAXIM INTEGRATED PRODUCTS  MAX4582CSE+  芯片, 模拟多路复用器, 双路, 4:1, NSOIC-16

The is a low voltage CMOS two 4 channel analogue multiplexer in 16 pin NSOIC package. This device can handle rail to rail analogue signals. All digital inputs have 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS logic compatibility when using single +5V or dual ±5V supplies. It is used in battery operated equipment, low voltage and data acquisition systems.

.

Supply voltage range from 2V to 12V and ±2V to ±6V

.

Operating temperature range from 0°C to 70°C

.

Low distortion of less than 0.02% 600 ohm

.

High off isolation of less than -74dB 50 ohm

.

Maximum switch on-resistance of 450 ohm at TA = 25°C single +3V supply

.

Maximum switch on-resistance match between channels is 4ohm at TA = +25°C dual supply

.

Low off leakage current of 1nA at TA = 25°C single +3V supply

.

Maximum switch on-resistance flatness is 10 ohm at TA = 25°C dual supply

.

Low on-leakage current of 1nA at TA= 25°C single +3V supply

.

Low crosstalk of less than -96dB
